TWO POST SPL10000
Nussbaum Automotive Solutions, LP | 1932 Jordache Court, Gastonia, NC 28052 | 704.864.2470 | Email: info@nussbaum-usa.com | us.nussbaumlifts.com
16

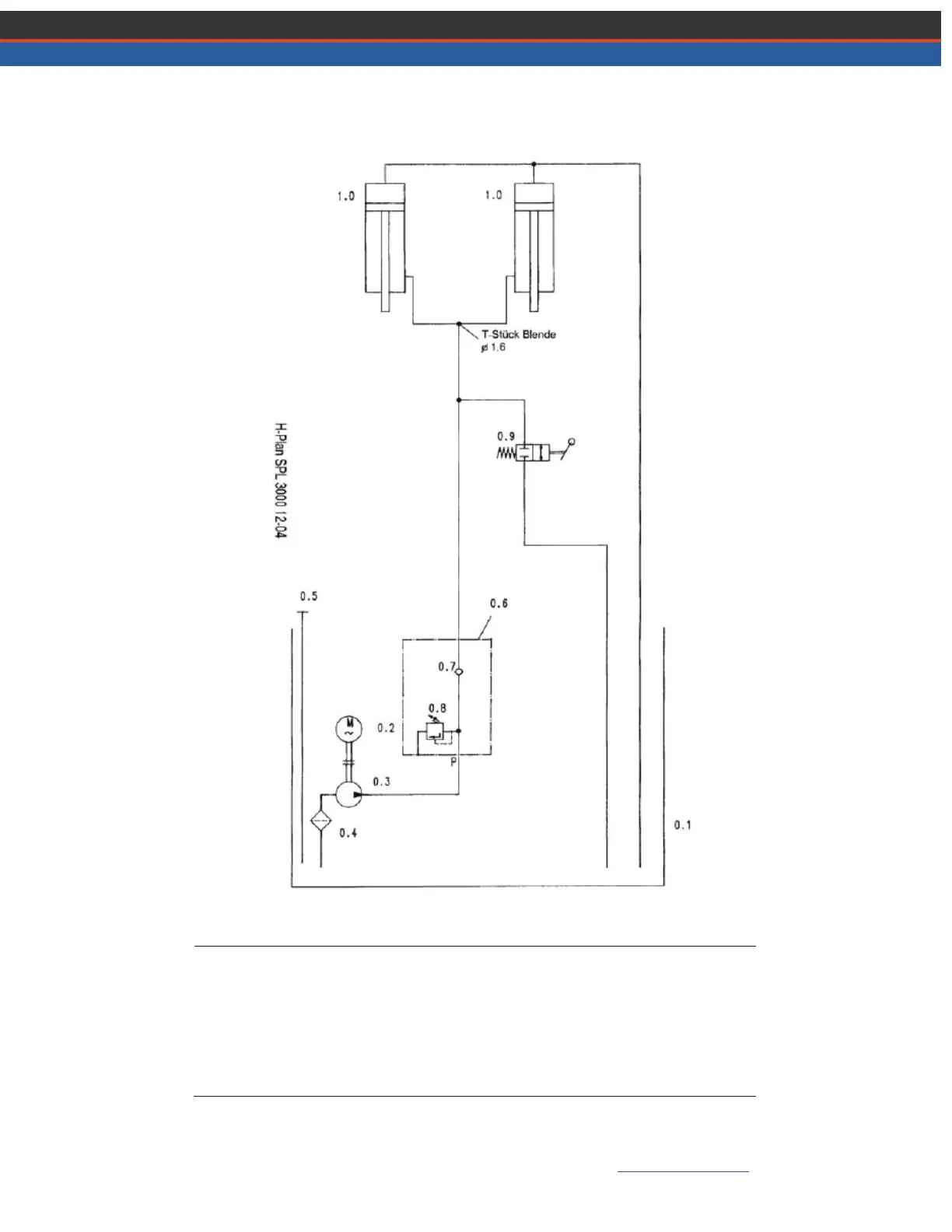

HYDRAULIC PLAN
0.1
OIL TANK 0.7 HOLDING VALVE
0.2
MOTOR 3KW
0.8
PRESSURE RELIEF VALVE
0.3
GEAR PUMP
0.9
HOLDING VALVE
0.4
OIL FILTER
1.0
CYLINDER
0.5
OIL LEVEL GAUGE
0.6
HYDRAULIC BLOCK
