TWO POST SPL10000
Nussbaum Automotive Solutions, LP | 1932 Jordache Court, Gastonia, NC 28052 | 704.864.2470 | Email: info@nussbaum-usa.com | us.nussbaumlifts.com
23

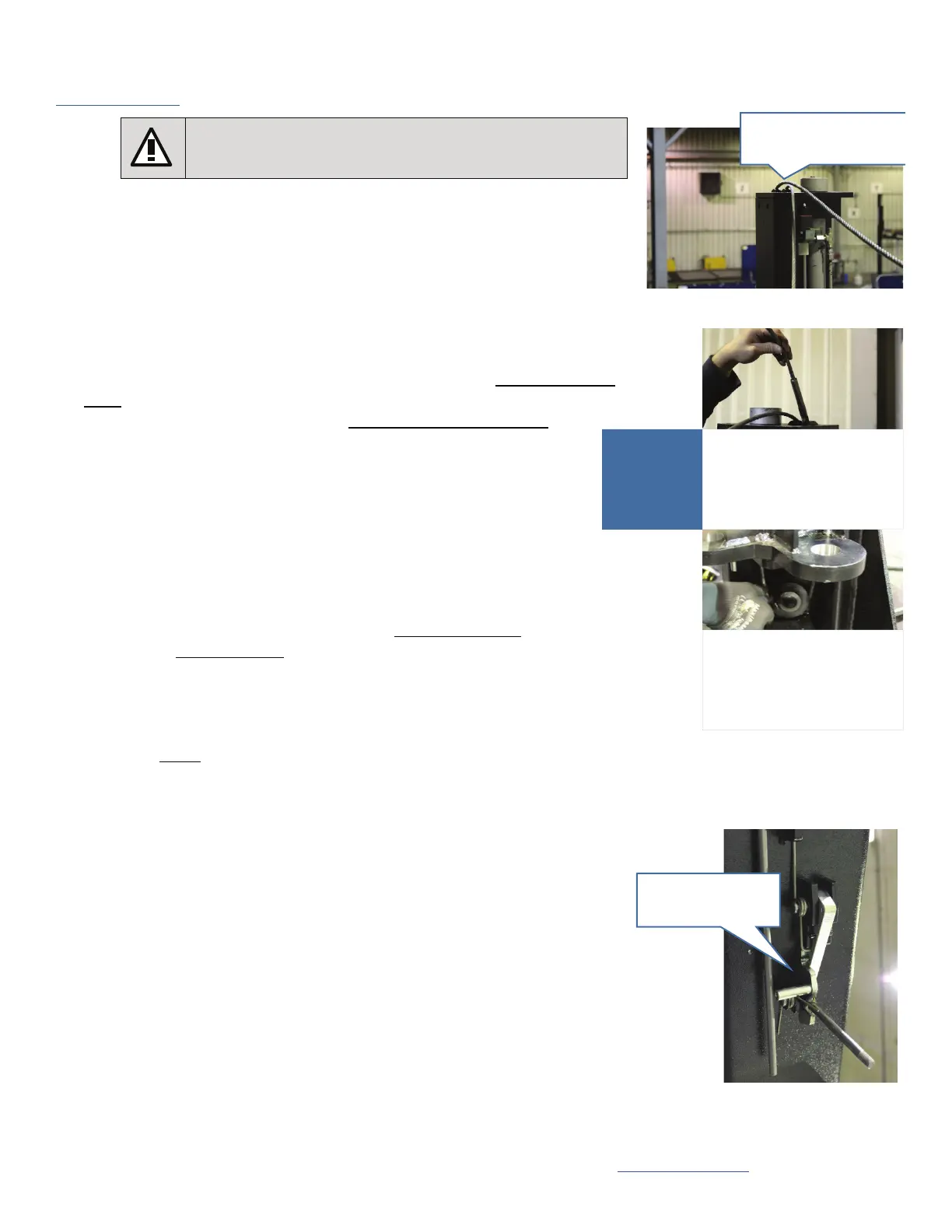

CABLE ASSEMBLY
Attention: The Steel Synchronizing Equalizing Cables must
never cross!
Remove Protective Hydraulic Cylinder Cover from both Posts.
Place Carriage into 1
st
Locking Position on both Posts.
Pull Synchronizing Equalizing Cable from the top of Post 1 (motor mount Post
side) across Front Roller, and over to Post 2 Front Roller.
Pull tight cable slack across to Lift Column 2.
Repeat steps 3 and 4 for the Synchronizing Equalizing Cable from
Post 2.
NOTE: Cables should not be slacked inside Posts.
Feed Synchronizing Equalizing Cable 1 into the top of Post 2, BEHIND Post 2’s
cable.
Pull Synchronizing Equalizing Cable 1 all the way down to the floor.
Remove Pulley at the bottom of each Post.
Loop Synchronizing Equalizing Cable 1 back up through the 2” Ratchet Ladder
guides to the top hole.
Place M16 Hex Nut on the end of the Synchronizing Equalizing Cable 1.
Repeat steps 3-9 for Synchronizing Equalizing Cable 2
WARNING: Cable 2 MUST BE FED into Post 1 In front of cable 1.
Place Pulley, spacer side first, onto the cable.
Remount onto the Post.
Secure with the Thrust Washer and C-Clip.
Repeat for Post 2.
Remount the Overhead Telescope Assembly using 8 M10 Bolts. Make sure
Cables are under the Overhead Telescope Assembly.
Install Manual Latch Release Cable on top of the Overhead Telescope Assembly, through the provided guides.
FIRST attach Post 2 end to the Manual Latch Release Cable using the pre-assembled bolt and nut.
Feed Post 1 end of Manual Latch Release Cable through the guide on the Locking
Mechanism and secure with existing bolt.
Feed Synchronizing Equalizing Cable
into Post 2 BEHIND the existing cable.
Pulley installed on slacked
Cable at bottom of Both Posts.
Insert Manual Latch
Release Cable
