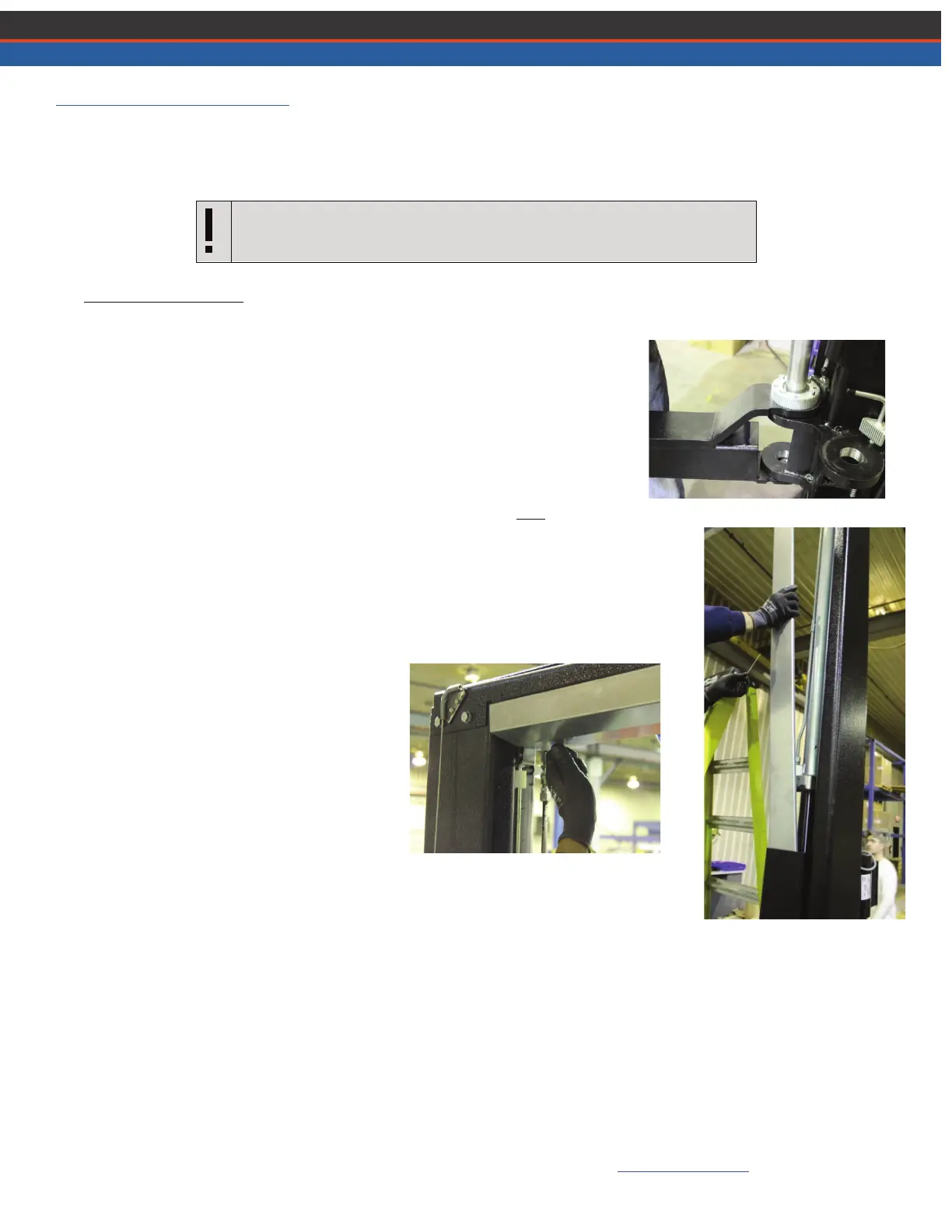

LIFT CARRY ARMS INSTALLATION
Remove Swivel Arm Pin from Yoke.
Grease Swivel Arm Pin and Holes.
Install the two Short Lift Carry Arms on the “motor side” of the Lift.
It is best to use the shortest arm length as possible while ensuring
proper connection at the manufacturers designated “pick-up” points.
For each Lift Carry Arm: Slide Lift Carry Arm into Yoke and install Swivel Arm Pin.
Attach the second C-Clip at the bottom of the Pin to secure into place.
Repeat with all Lift Carry Arms.
Raise and lower the Lift several times without load.
Check Synchronizing Equalizing Cable for proper tension by pinching the cables
together between your fingers just below the carriage. The cables should
barely touch together for proper cables tension. (Adjust the tension as
needed.)
To Seat\level both Lift Carry Arms in the Locks, Press and Hold only the Lift Button.
Place the Hydraulic Cylinder Protection Cover on both Posts.
Secure with provided Bolts.
Place the Overhead Telescope Cover in place and secure.
To Next Page
