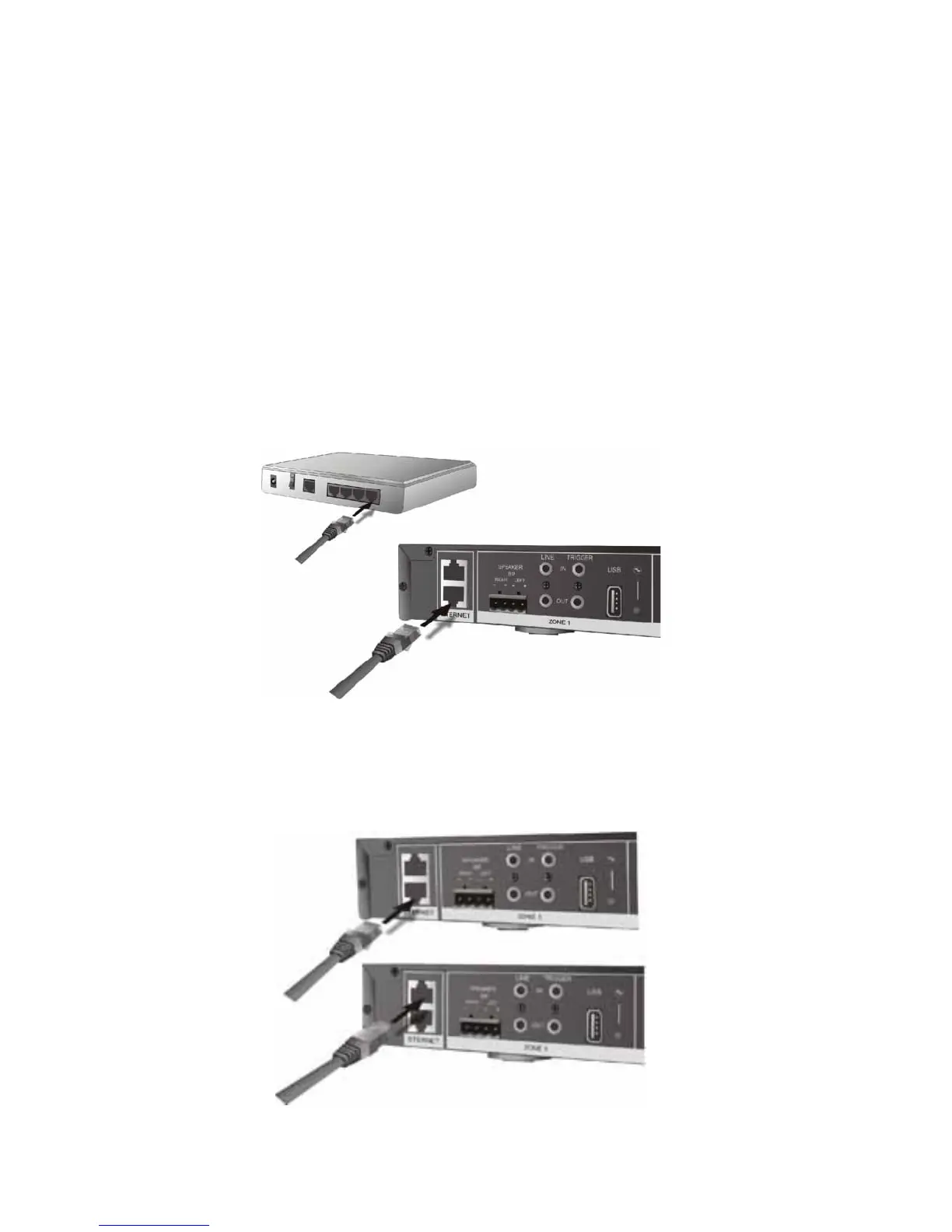

If you are installing the NVP3100-xx or NVP3500-xx rack mount component, the network connection is completed by con-
necting one of the NVP3100-xx’s (or NVP3500-xx’s) two Ethernet ports directly to the home’s network using a standard
Ethernet cable. Either of the two Ethernet ports will communicate when connected, as shown in Fig. 5. The second port is
used for daisy chaining multiple P3100 or P3500 units for more audio zones, as shown in Fig. 6. Note that the NVP3100-xx
and NVP3500-xx are not wireless devices and do not use Wi-Fi for communication.
Example shown in fig. 5 and 6 using the NVP3100-xx Player
Fig. 5
Fig. 6
1.3 Installing the NVP3100-xx and NVP3500-xx Players
