nVent.com | 5
Insulated
parallel
crimps
Be sure wires
are not caught
in threads.
Trim
Weather seal
6
7
8

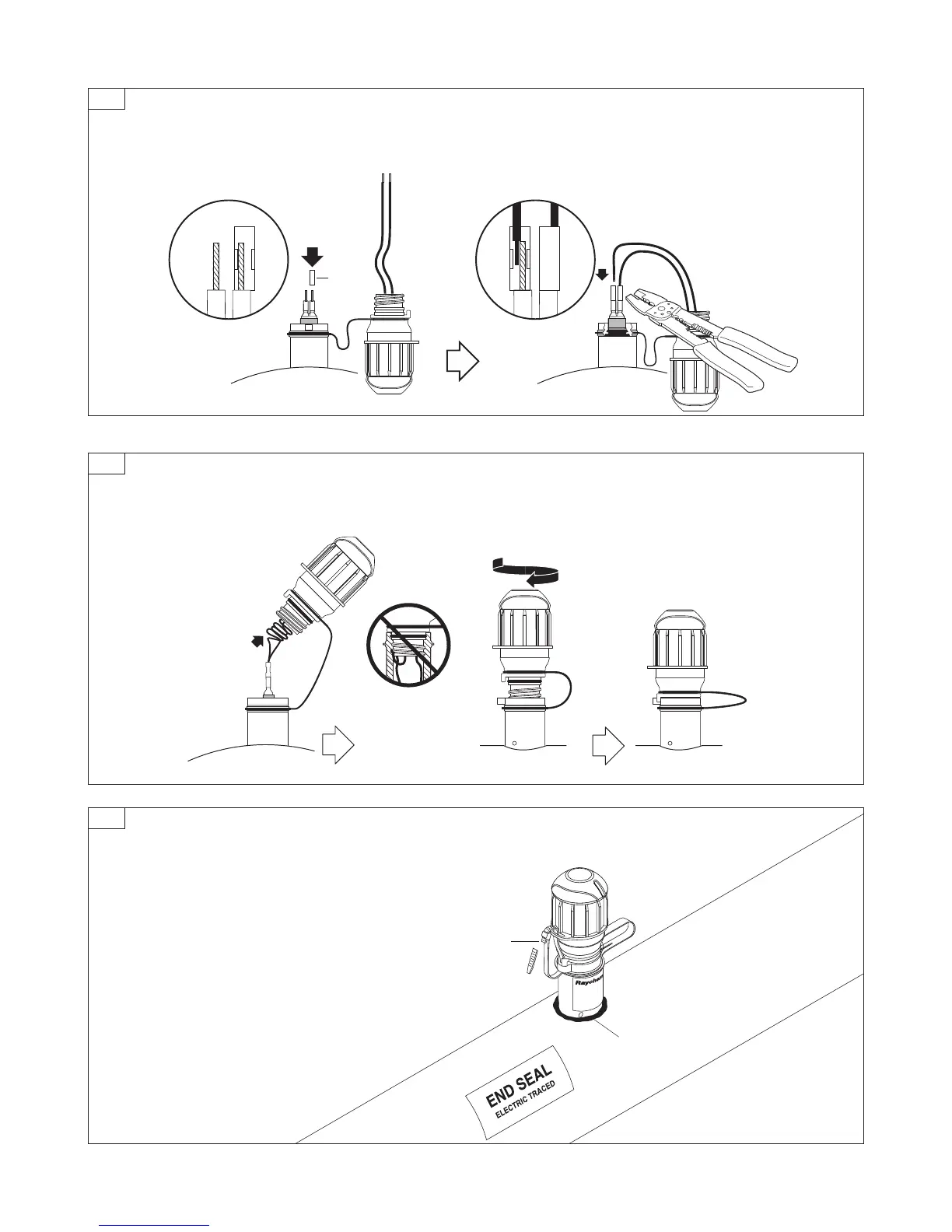

• Install new light assembly into leash.
• Place blue crimps onto bus wires.
• Crimp bus wires to lead wires.
• Push excess wire inside light. • Hand tighten light onto end seal stand.
• Insert cable tie through slots on stand and light then tighten.
• Leave these instructions with the end user for future
reference.
