nvent RAYCHEM E-100-LR-A - Begin here for Light Replacement; Step B and C; Step D and E

6 | nVent.com
E
3/8 in
(9 mm)
3/8 in
(9 mm)
D
• Use Panduit CT-100
crimp tool and red
insulated butt splices to
crimp new wires to old
wires.
C
2 in
(50 mm)
Leash
B
• Install new light
into yellow leash.
• Cut existing wires approximately 2 in (50 mm) above top
of crimps or core sealer.
• Remove old light from yellow leash.
• Use 20 AWG wire stripper to remove insulation from each
of the four wire ends.

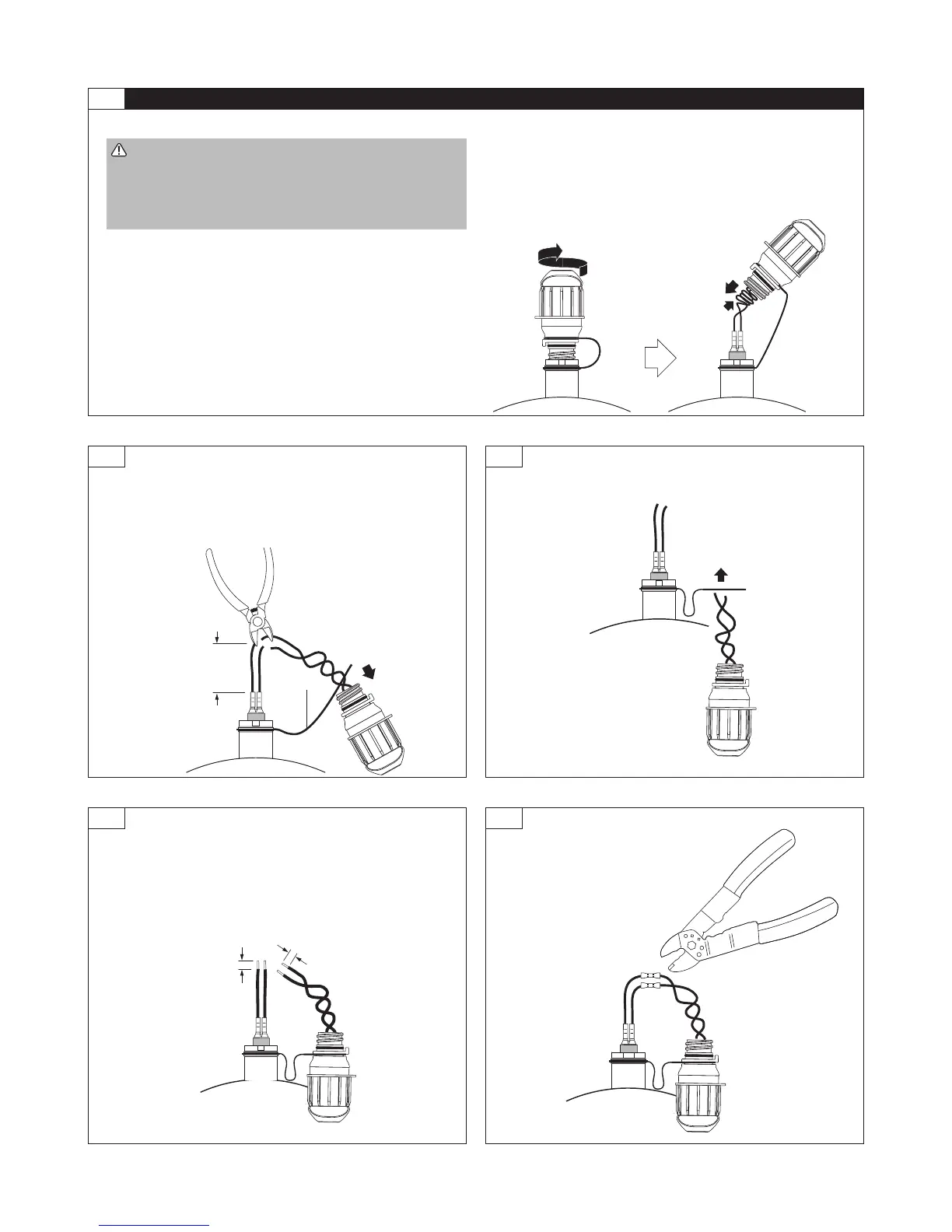

BEGIN HERE FOR LIGHT REPLACEMENT
On existing light:
• Cut cable tie (if present).
• Unscrew light.
• Pull excess wire from inside light.
Note: The existing light shown in the instructions may look
different from the existing light in your installation.
WARNING: Shock hazard. Electrical conductors will
beexposed. Re-entry should only be performed by
qualified personnel. Turn off power and follow
standard electrical lockout procedures before
openingend seal.
A
