Please note that the following figures are for illustration purposes only.
2.
Separate the bracket from the ConnectX-4 Lx card.
3.
Save the two screws.
Installing the New Bracket
1.
Place the bracket onto the card until the screw holes line up.
2.
Screw on the bracket using the screws saved from the bracket removal procedure above.
Installation Instructions
This section provides detailed instructions on how to install your adapter card in a system.
1.
Before installing the card, make sure that the system is off and the power cord is not connected
to the server. Please follow proper electrical grounding procedures.
2.
Open the system case.
3.

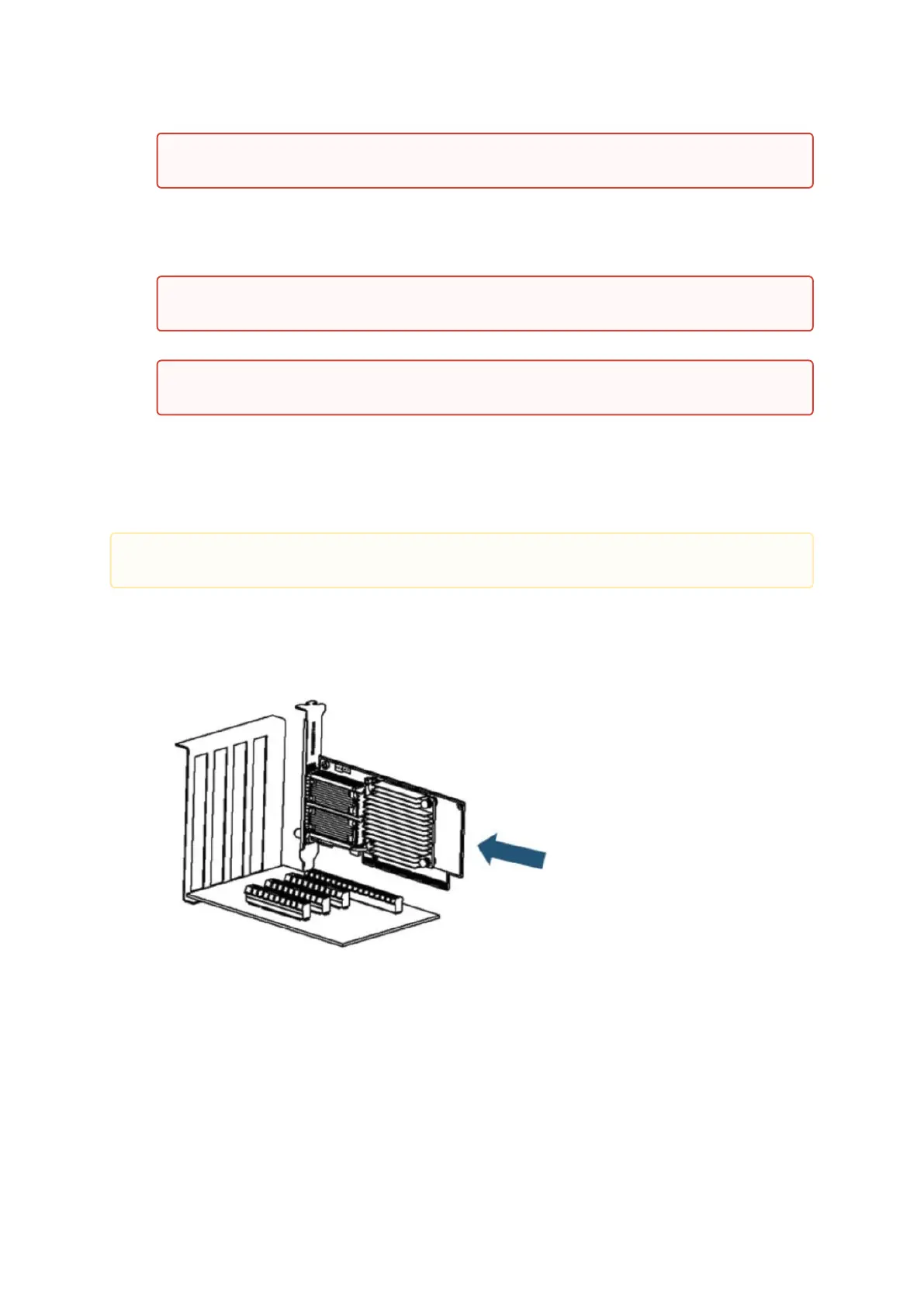

Place the adapter in an available PCI Express slot.
Use a torque driver to apply up to 2 lbs-in torque on the screws.
Do not force the bracket onto the adapter card.
Be careful not to put stress on the LEDs on the adapter card.
