NVIDIA Corporation
40 Quadro FX 4800/5800 and Quadro CX SDI User’s Guide– Version 1.0
C
HAPTER 4
Linux—Using the Graphics to Video Out Control Panel
Step 3: Choose Data Formats

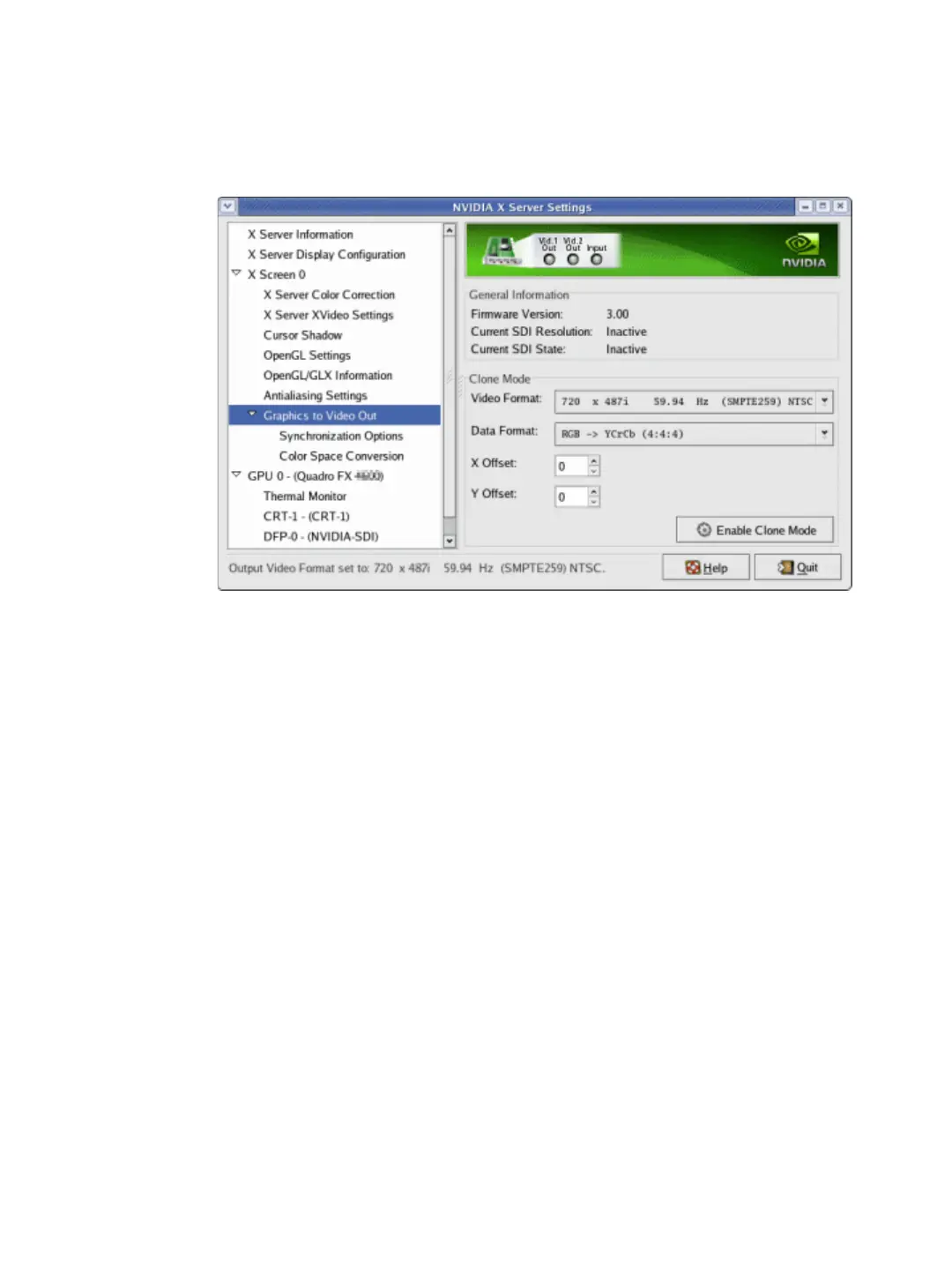

1 ClicktheGraphicstoVideoOuttreeitemfromthesidemenu.
2 SpecifytheDataFormat
ClicktheOutputDataFormatarrowandthenclickthecolorformatyouwanttouse.
DataFormatcontrolsthecolormodel,datapacking,and alphaorzcomponentsinthe
outgoingvideostream.
Note:
Thevideoformatshouldalreadyhavebeensetupfromthedisplayconfiguration
screen.
