Quadro FX 4800/5800 and Quadro CX SDI User’s Guide – Version 1.0 41
C
HAPTER 4
Linux—Using the Graphics to Video Out Control Panel
Advanced Setups
ThissectiondescribesthefollowingSDIcontrolsandsupplementalinformation:
• “UnderstandingtheStatusIndicators”onpage 41
• “AdjustingtheDesktopArea”onpage 42
• “CustomizingtheColorSpaceConversion”onpage 43
• “SynchronizingtheSDIOutputtoanExternalSource”onpage 44
Understanding the Status Indicators
TheGraphicstoSDIpropertypagebannerindicatesthestatusoftheSDIoutputaswellas
theexternalsynchronizationsignals.Figure4.4showsthecorrelationbetweenthe
indicatorsonthebannerandtheactualconnectors.

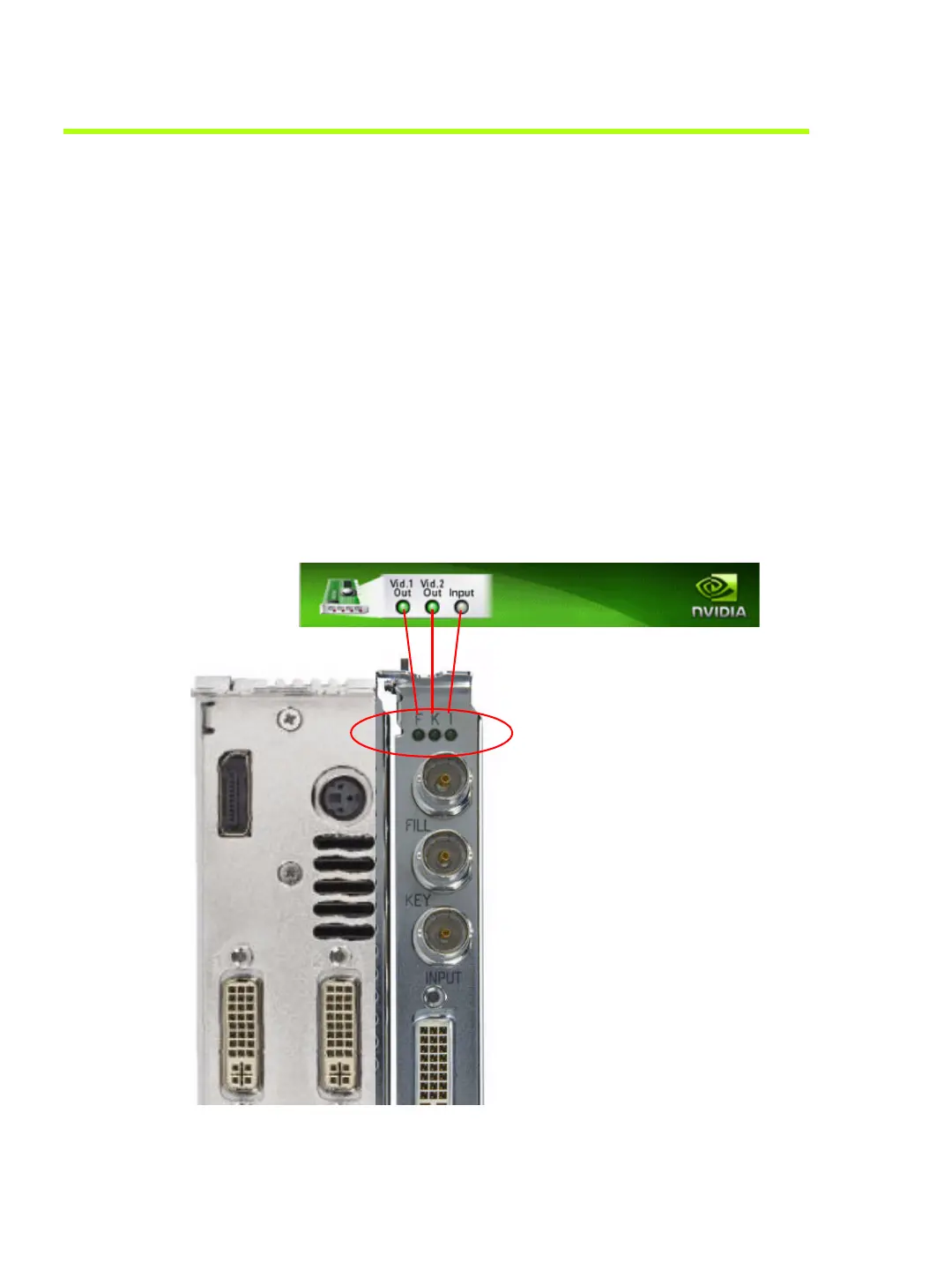

Figure 4.4 Connection Status Indicators
Quadro FX SDI Connector Bracket LEDs
Graphics to Video Out banner
