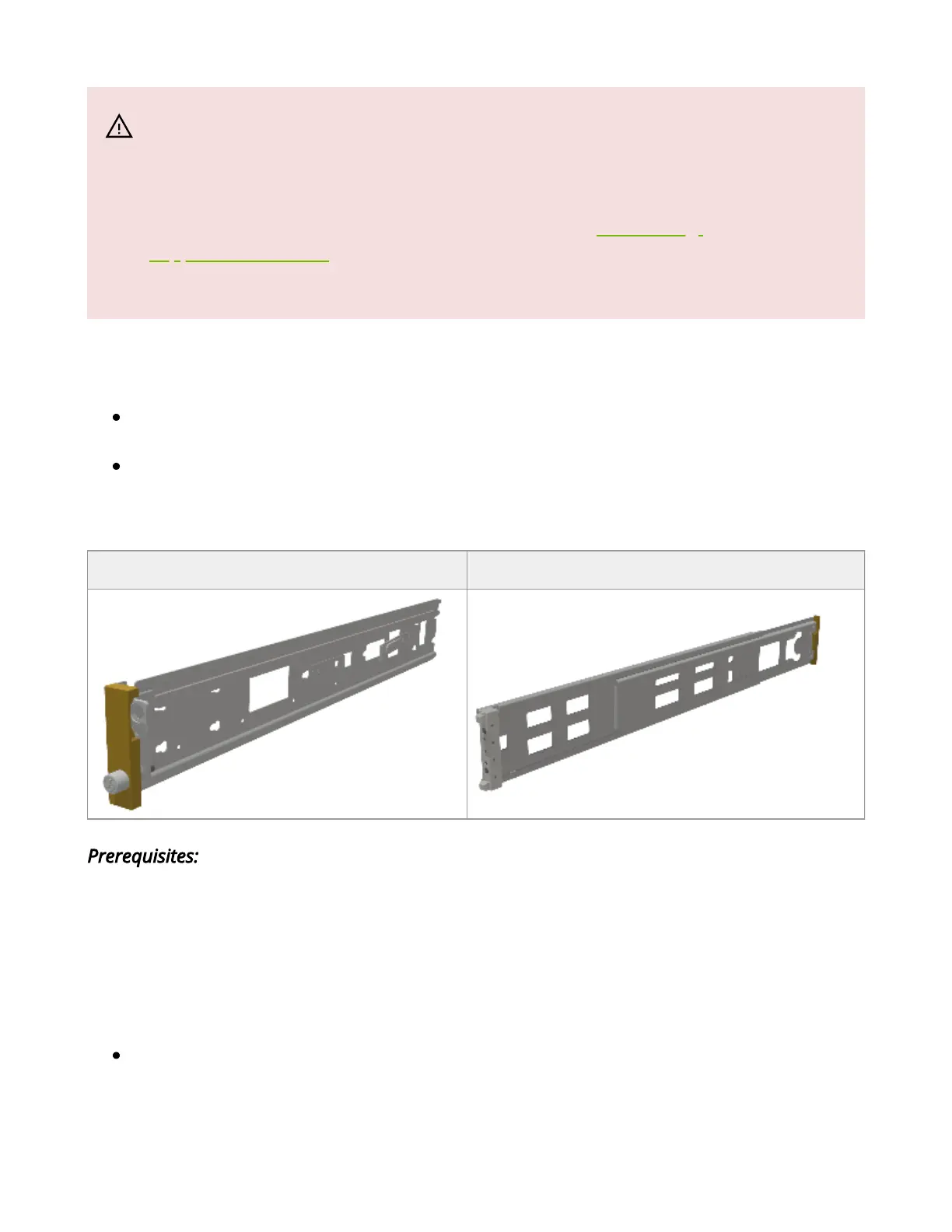

The following parts are included in the tool-less rail kit (see figure below):
2x System Rails (A)
2x Rack Rails (B)
Rail Kit Parts
A B
Prerequisites:
Before mounting the system to the rack, select the way you wish to place the system. Pay
attention to the airflow within the rack cooling, connector and cabling options.
While planning how to place the system, review the two installation options shown in the
table below, and consider the following points:
Make sure the system air flow is compatible with your installation selection. It is
important to keep the airflow within the rack in the same direction.
Warning
Prior to the installation procedure, inspect all rail-kit components and
make sure none of them is missing or damaged. If anything is missing
or damaged, contact your NVIDIA representative at Networking-
support@nvidia.com.
