Inserting the Rack Rails (B)

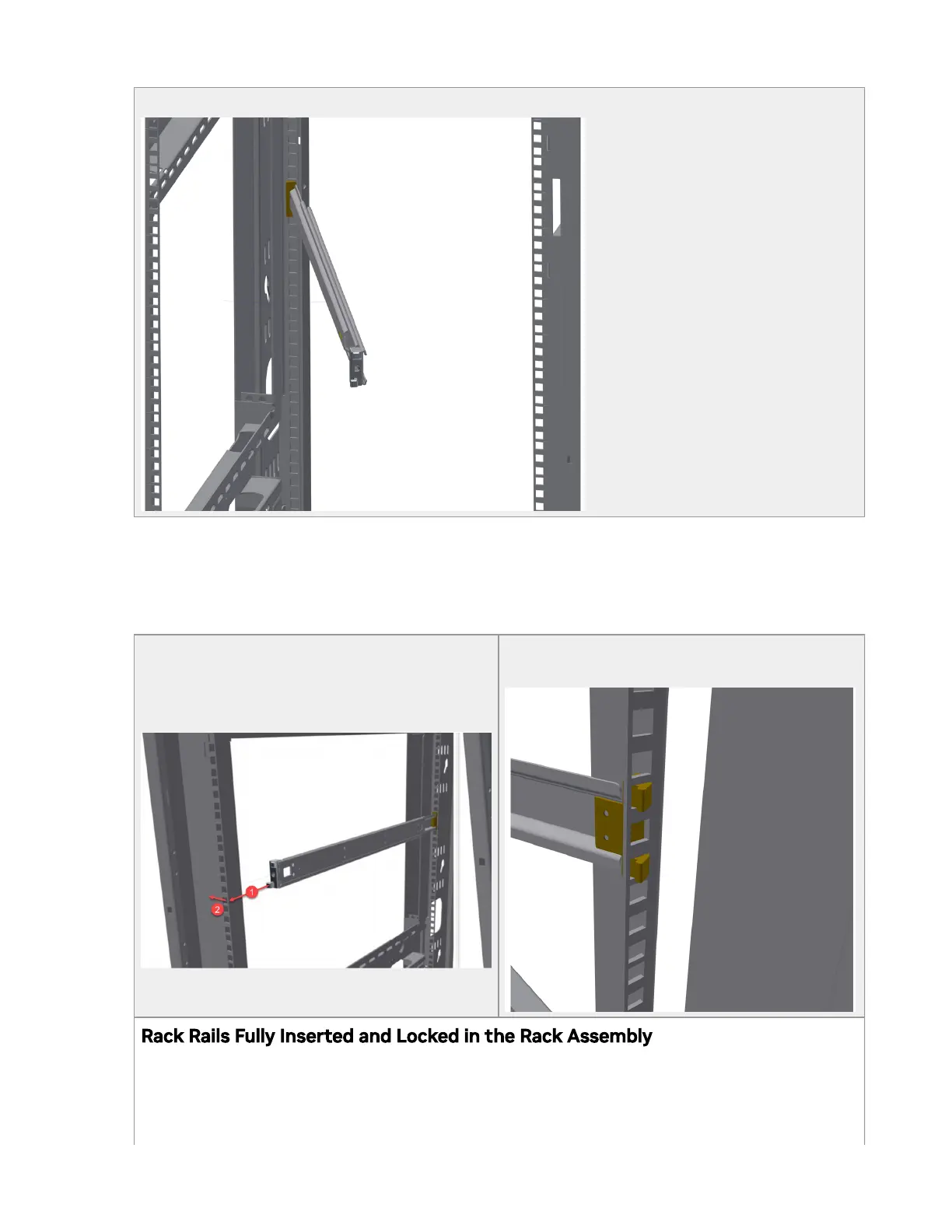

4. Align both rack rails (B) to sit horizontally in parallel to the rack assembly. By
straightening the rails' angular position, their breaks will be caught and locked in
the rack's slots.
Aligning the Rack Rails (B) Angular
Position
The Breaks are Caught and Locked in
the Rack's Slots
Rack Rails Fully Inserted and Locked in the Rack Assembly
