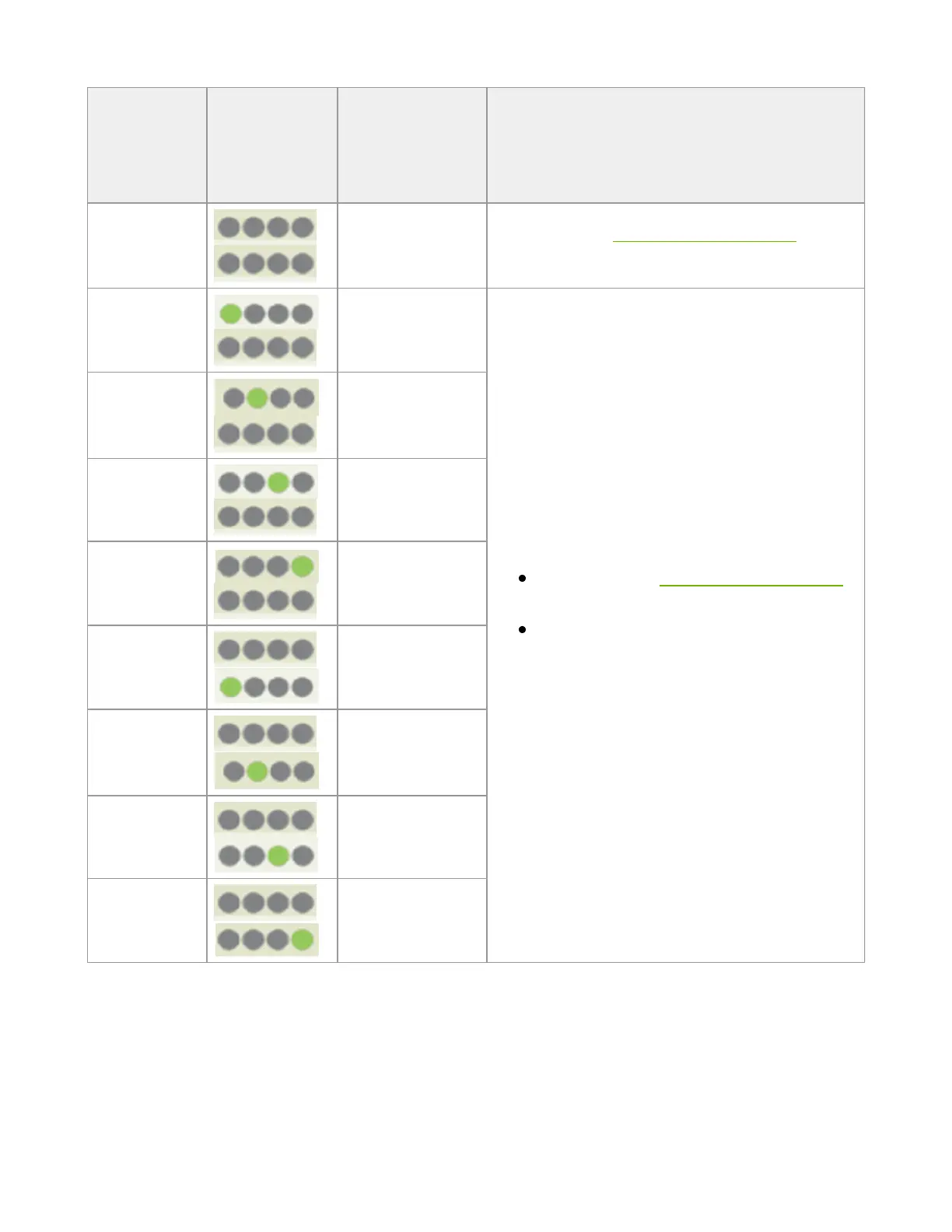

NVIDIA Spectrum-4 SN5000 2U Switch Systems Hardware User Manual 51
State
State
Indication
LEDs
[/1 /2 /3 /4]
OSFP/QSFP-DD
Module LED
Indication
Comments
0 Any link is up
See details in Port LEDs Indications (State
0)
1
8x/4xA/2xA/1x
A
See details in Port LEDs Indications
(States 1-8).
Only one of the link types can be up
at a given time.
2
8x/4xB/2xB/1x
B
3 8x/2xC/1xC
4 8x/2xD/1xD
5 8x/1xE
6 8x/1xF
7 8x/1xG
8 8x/1xH
The port LED behavior indicates the port state, as follows:
Port LEDs Indications
