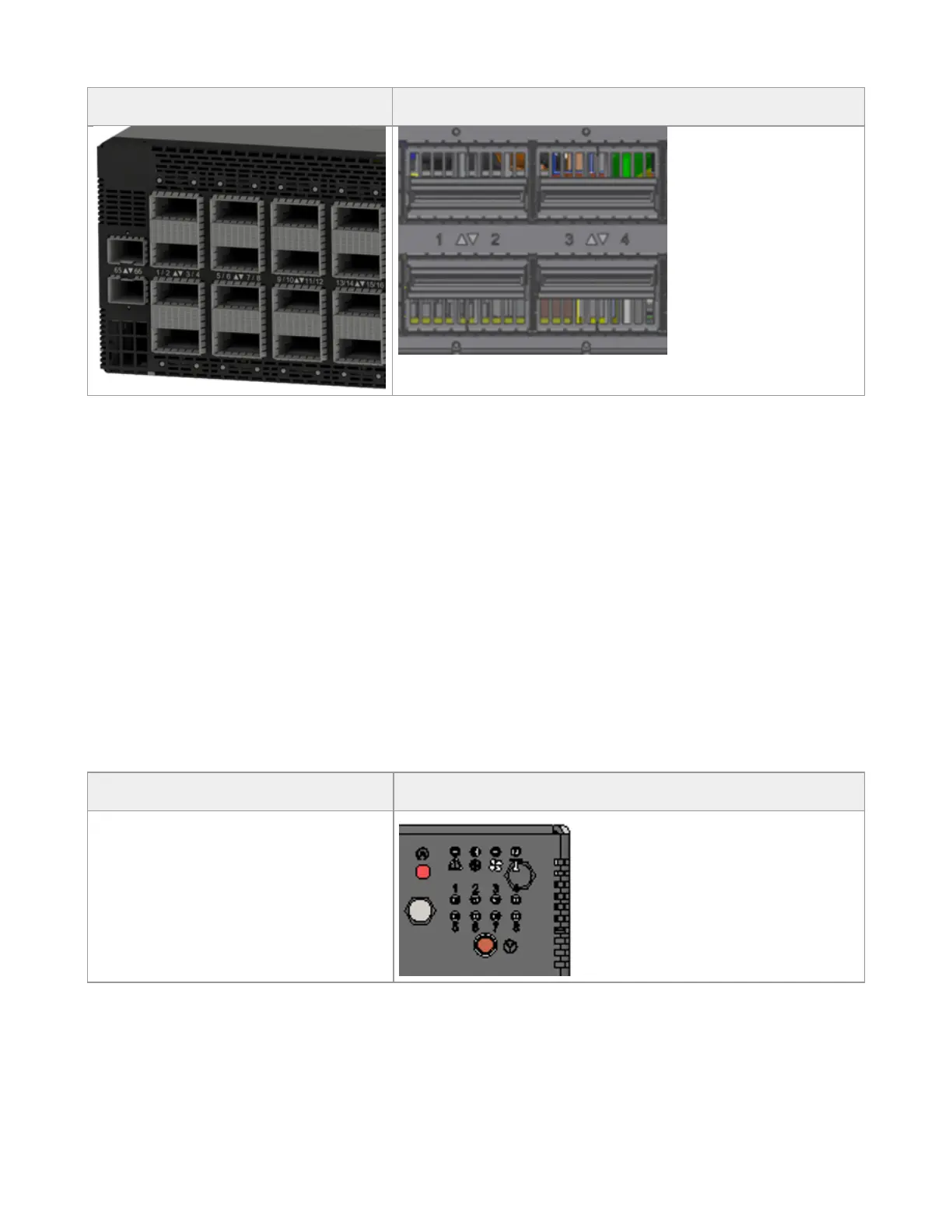

SN5400 Port LEDs SN5600 Port LEDs
*The figures are provided for Illustration purposes only. The design may slightly vary in
different systems.
Each QSFP-DD/OSFP module can be used as two 4X ports or four 2X ports, and certain
modules can be split to eight 1X ports as well. Each QSFP-DD/OSFP module has one
dedicated bi-color LED. In order to provide link information for more than one port by
using one LED, LED splitting control button is available. You may use the lane select
button to select between 8 indication states. By pressing the button, the next indication
state will be selected in a cyclic manner. The current state can be identified by the LED
splitting state indication LEDs. The states and their indications are detailed in the below
table.
Lane Select LEDs
LED Splitting
Control
LED Splitting Options
