Hardware setup
BLDC Control Demo User's Guide, Rev. 6, 06/2020
NXP Semiconductors 13
4.5.4.
FRDM-KE15Z board
The FRDM-KE15Z is a low-cost development tool for Kinetis KE1x family of MCUs built around the
Arm Cortex-M0+ core. The FRDM-KE15Z hardware is form-factor compatible with the Arduino R3 pin
layout, providing a broad range of expansion board options. The FRDM-KE15Z platform features
OpenSDA, the NXP open-source hardware embedded serial and debug adapter running an open-source
bootloader.
To begin, configure the jumpers on the FRDM-KE15Z Freedom System module properly. Table 11 lists
the specific jumpers and their settings for the FRDM-KE15Z Freedom System module.
Table 9. FRDM-KE15Z jumper settings
Jumper Setting Jumper Setting Jumper Setting
J7
1-2
J10
1-2
J15
2-3
J8
1-2
J14
1-2

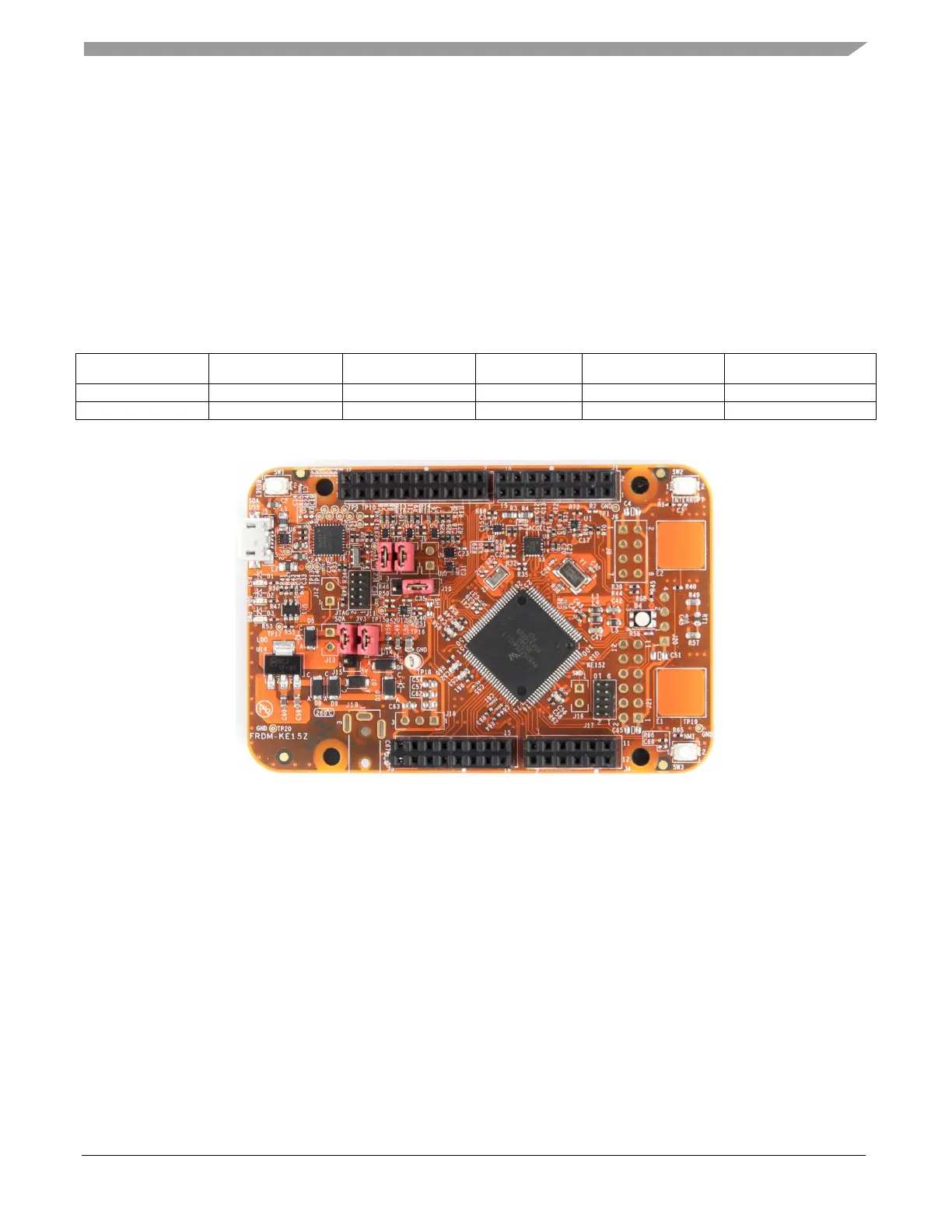

Figure 11. FRDM-KE15Z Freedom development board
4.5.5.
FRDM-KE16Z board
The FRDM-KE16Z is a low-cost development tool for Kinetis KE1xZ family of MCUs built around the
Arm Cortex-M0+ core. The FRDM-KE16Z hardware is form-factor compatible with the Arduino R3 pin
layout, providing a broad range of expansion board options. The FRDM-KE16Z platform features
OpenSDA, the NXP open-source hardware embedded serial and debug adapter running an open-source
bootloader.
To begin, configure the jumpers and 0-Ω resistors on the FRDM-KE16Z Freedom System module
properly. Table 13 lists the specific jumpers and Table 14 lists the 0-Ω resistor position settings for the
FRDM-KE16Z Freedom System module.
