Hardware setup
BLDC Control Demo User's Guide, Rev. 6, 06/2020
NXP Semiconductors 7
4.3.3.
TWR-KV58F Tower System module
The TWR-KV58F220M is a development module for the Kinetis KV5x family of MCUs built around
the Arm
®
Cortex
®
-M7 core. This MCU has enough power for use in multi-motor control applications
(such as the PMSM or BLDC motors with simple or advanced control techniques). The MCU has a wide
range of motor-control peripherals, lots of memory (depending on the model used), and a powerful core.
To begin, configure the jumpers on the TWR-KV58F220M and TWR-MC-LV3PH Tower System
modules properly. Table 8 lists the specific jumpers and their settings for the TWR-KV58F220M Tower
System module:
Table 6. TWR-KV58F jumper settings
Jumper Setting Jumper Setting Jumper Setting
J1
1-2
J11
1-2
J23
2-3
J2
open
J12
1-2
J24
2-3
J3
1-2
J14
open
J25
2-3
J4
1-2
J17
open
J26
2-3
J7
1-2
J18
open
J28
1-2
J8
1-2
J19
open
J29
open
J9
open
J20
open
J30
1-2, 3-4, 5-6, 7-8
J10
1-2
J21
1-2
—
—

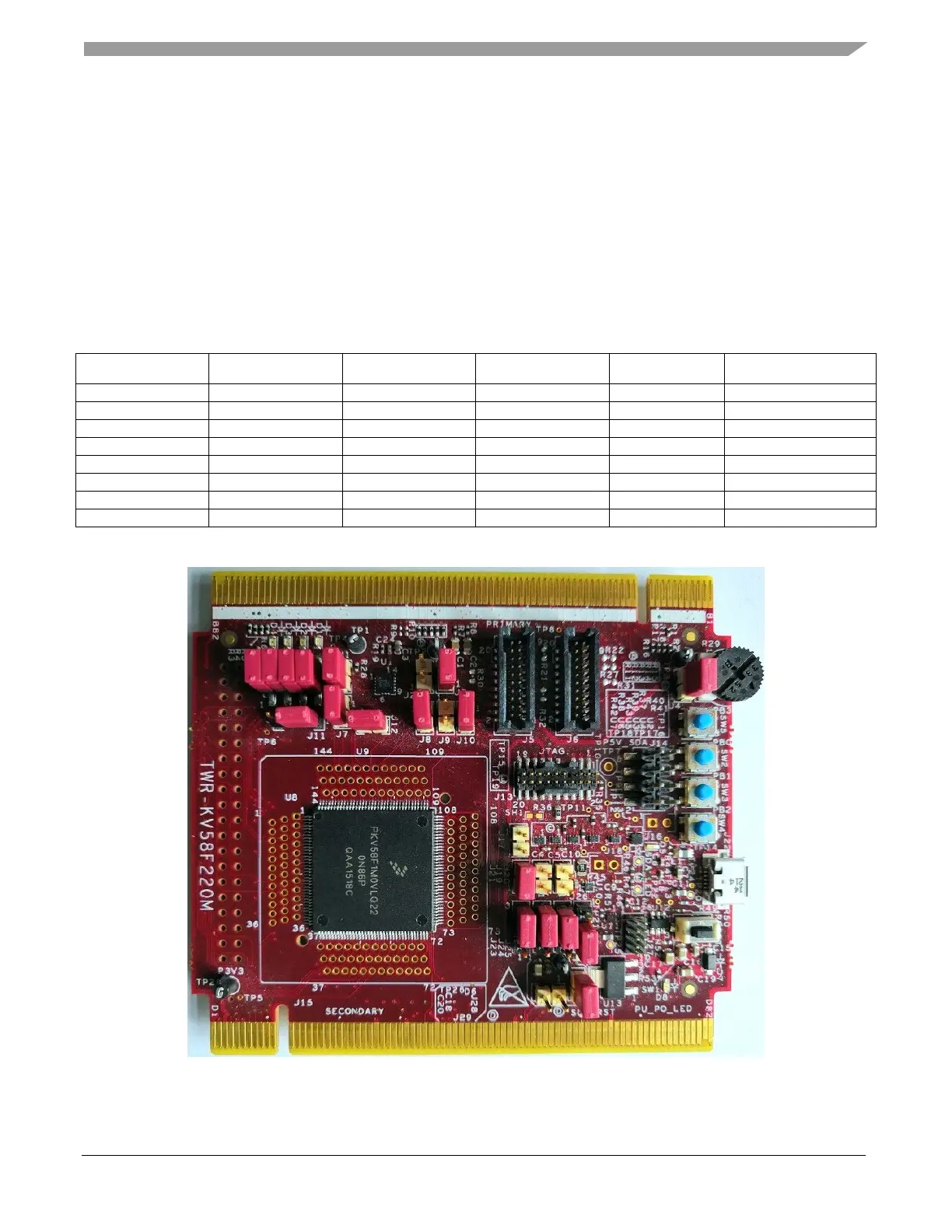

Figure 5. TWR-KV58F Tower System module
