Hardware setup
BLDC Control Demo User's Guide, Rev. 6, 06/2020
6 NXP Semiconductors
4.3.2.
TWR-KV46F150M MCU module
Configure the jumpers on the TWR-KV46F150 and TWR-MC-LV3PH modules properly. Table 7 lists
the relevant jumpers and their settings for the TWR-KV46F150 MCU module:
Table 5. TWR-KV46F jumper settings
Jumper Setting Jumper Setting Jumper Setting
J1
open
J16
open
J505
3-4
J2
open
J19
open
J506
3-4
J4
2-3
J20
1-2
J512
1-2
J5
1-2
J21
open
J514
2-3
J13
1-2, 3-4
J23
open
J517
2-3
J15 1-2 — —
J519
J520
J521
J522
3-4
1-2
1-2
1-2

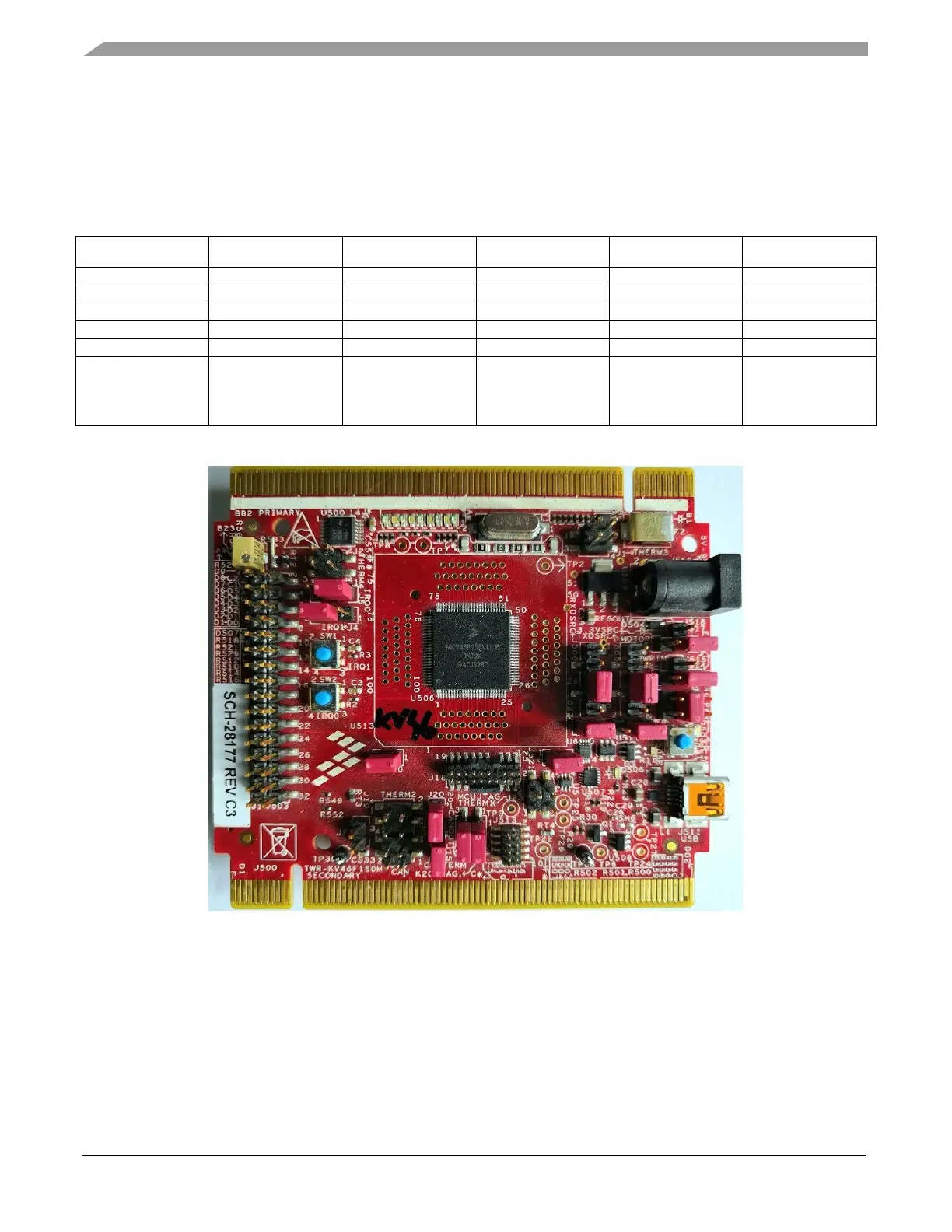

Figure 4. TWR-KV46F150M MCU module
