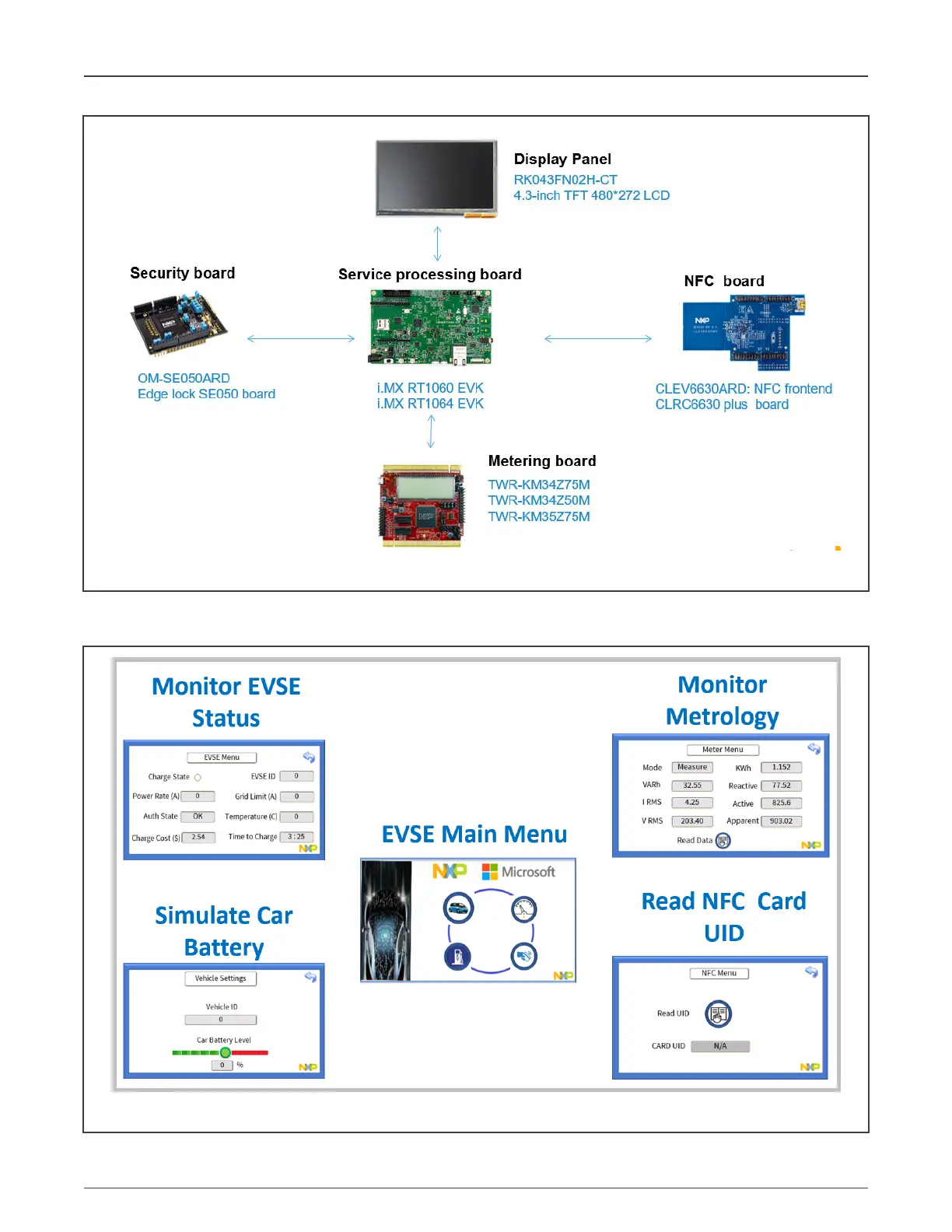

Figure 3. EVSE hardware support
The controller block manages communication with the meter, NFC, security, and IoT block. It also supports a GUI interface to
monitor and manage the EasyEVSE.
Figure 4. EVSE graphical user interface running on i.MX RT106x
NXP Semiconductors
Solution overview
NXP EasyEVSE EV Charging Station Development Platform User Guide, Rev. 0, 18 March 2022
User Guide 6 / 64
