The meter block processes the simulated instantaneous current injected to the vehicle and simulates its charging state.

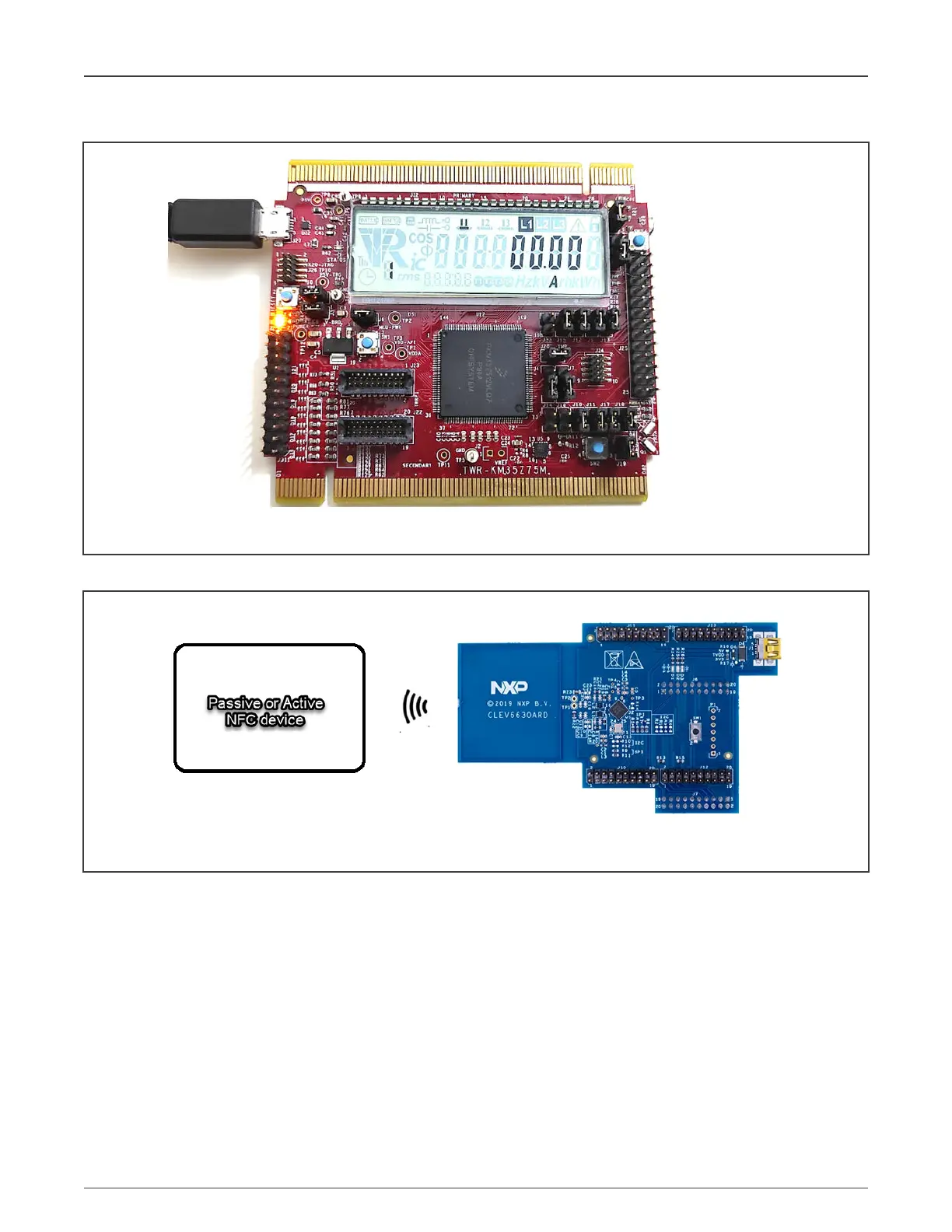

Figure 5. Meter block
The NFC block reads the UID of NFC devices, such as NFC MIFARE cards.
Figure 6. NFC block
The security block safely stores EasyEVSE credentials used with the Azure IoT cloud and accelerates security operations.
NXP Semiconductors
Solution overview
NXP EasyEVSE EV Charging Station Development Platform User Guide, Rev. 0, 18 March 2022
User Guide 7 / 64
