ODYS Multi TV 700 Move
12
EN

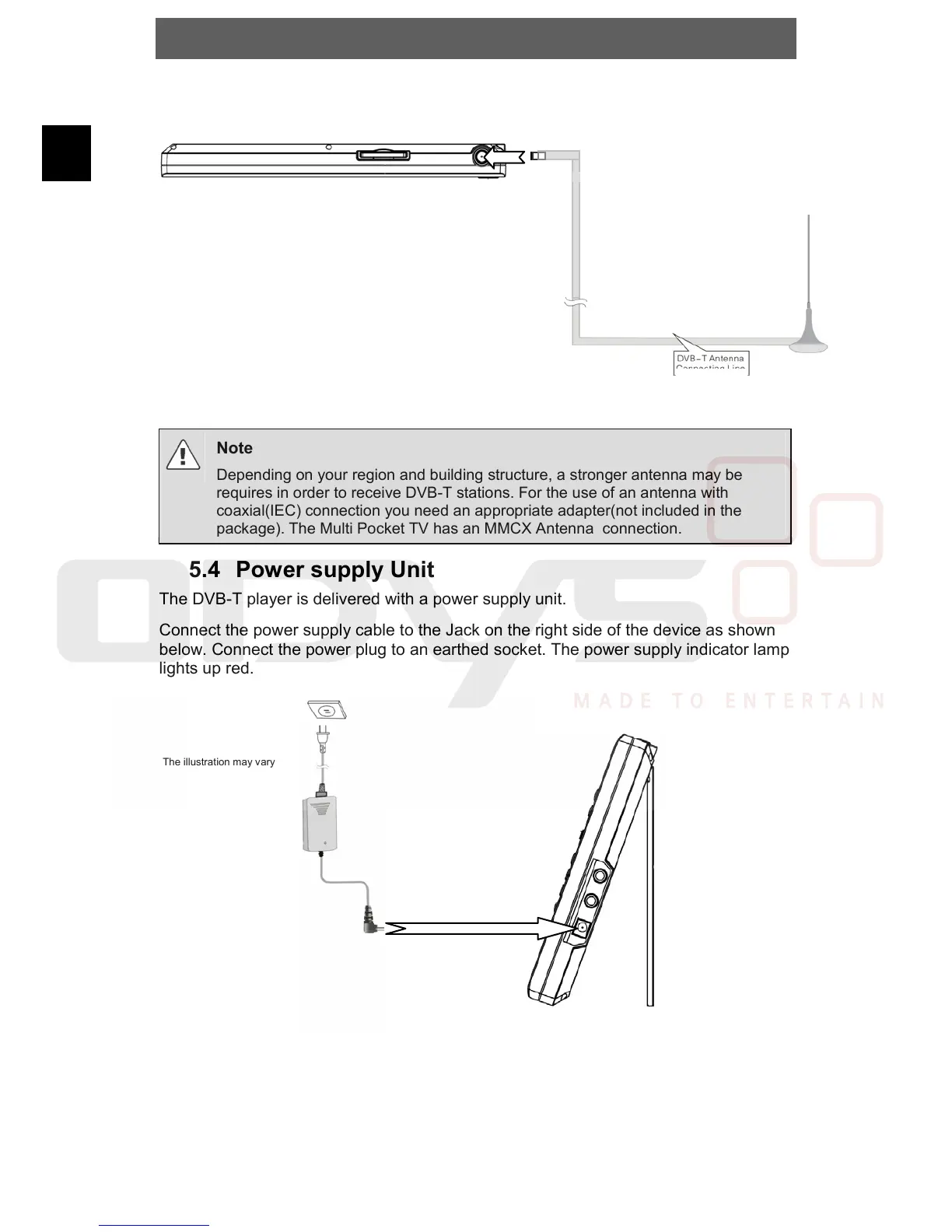

5.3 Connecting Additional DVB-T-Antenna
Connect the DVB-T-Antenna with DVB-T-Antenna connection jack.
Note
Depending on your region and building structure, a stronger antenna may be
requires in order to receive DVB-T stations. For the use of an antenna with
coaxial(IEC) connection you need an appropriate adapter(not included in the
package). The Multi Pocket TV has an MMCX Antenna connection.
5.4 Power supply Unit
The DVB-T player is delivered with a power supply unit.
Connect the power supply cable to the Jack on the right side of the device as shown
below. Connect the power plug to an earthed socket. The power supply indicator lamp
lights up red.
The illustration may vary
DVB-T
