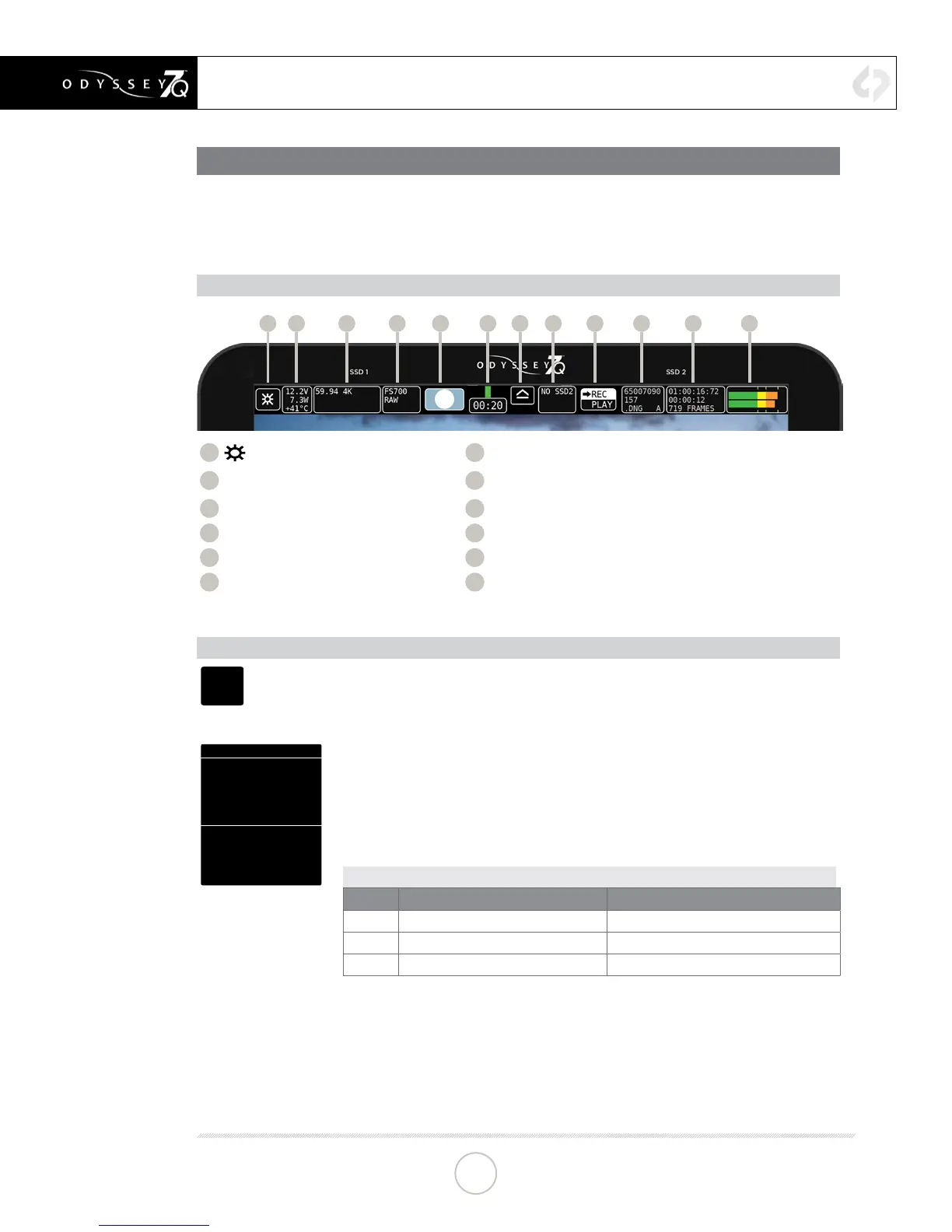

UPPER TOOL BAR (RECORD MODE)
Tapping the REC/PLAY Button toggles the Upper Tool Bar between Play mode and Record
mode. Upper Toolbar selections are different in Play Mode than in Record Mode. Some buttons
appear in all modes while others will only appear in a certain mode.
UPPER TOOL BAR CONTROLS (RECORD MODE)
1 2 3 4 5 6 7 8 9
10 11 12
1
☼ MENU BUTTON
7
SSD SAFE EJECT
2
SYSTEM STATUS
8
SSD2 STATUS
3
INPUT STATUS (REC MODE ONLY)
9
REC/PLAY TOGGLE
4
RECORD STATUS (REC MODE ONLY)
10
CLIP METADATA
5
TRIGGER BUTTON (REC MODE ONLY)
11
LAST TAKE
6
SSD1 STATUS
12
AUDIO
SYSTEM STATUS (ALL MODES)
12.2V
8.1W
+40°C
SYSTEM STATUS
VOLTS: 12.1V (6.5~34V)
POWER: 10.0W
TEMP: +31° (<60°C)
2014 AUG 21 08:42:58
ODYSSEY7Q ABOUT
FIRMWARE: 2.20.10 OCT 2014
SERIAL: 20-00000
WARRANTY: VOID
KEYS ACTIVATED:
BASIC FS700RAW CANONRAW
POWERED: 41 DAYS 19 HRS
RECORD: 9 DAYS 4 HRS
Displays critical specs of Odyssey7Q. Input voltage, Current wattage draw of Odyssey7Q
(varies with mode), current temperature of main processor. Tapping button brings up more
detailed information including the ABOUT menu of the Odyssey7Q.
The Odyssey7Q has a wide internal operating temperature window, up to 65° Celsius (149°
Fahrenheit). The Odyssey7Q uses its magnesium case to passively shed excess heat.
There are no vents or fans in the Odyssey7Q. Even under most harsh conditions, the
Odyssey7Q should not suffer any operational issues due to heat. However, if the internal
temperature of the Odyssey7Q rises high enough there are a series of warnings and
safeguards in place to protect the device and the recorded les.
TEMPERATURE WARNINGS AND SAFEGUARD
Temp System Status Text & Warning Operaonal Protecon
59° C Yellow text No change to operaon
61° C Red text & ashing warning New recordings prevented
65° C Red text & ashing warning Current recording stopped
