IPX7A-ION Motherboard Reference Guide
7 Connectors

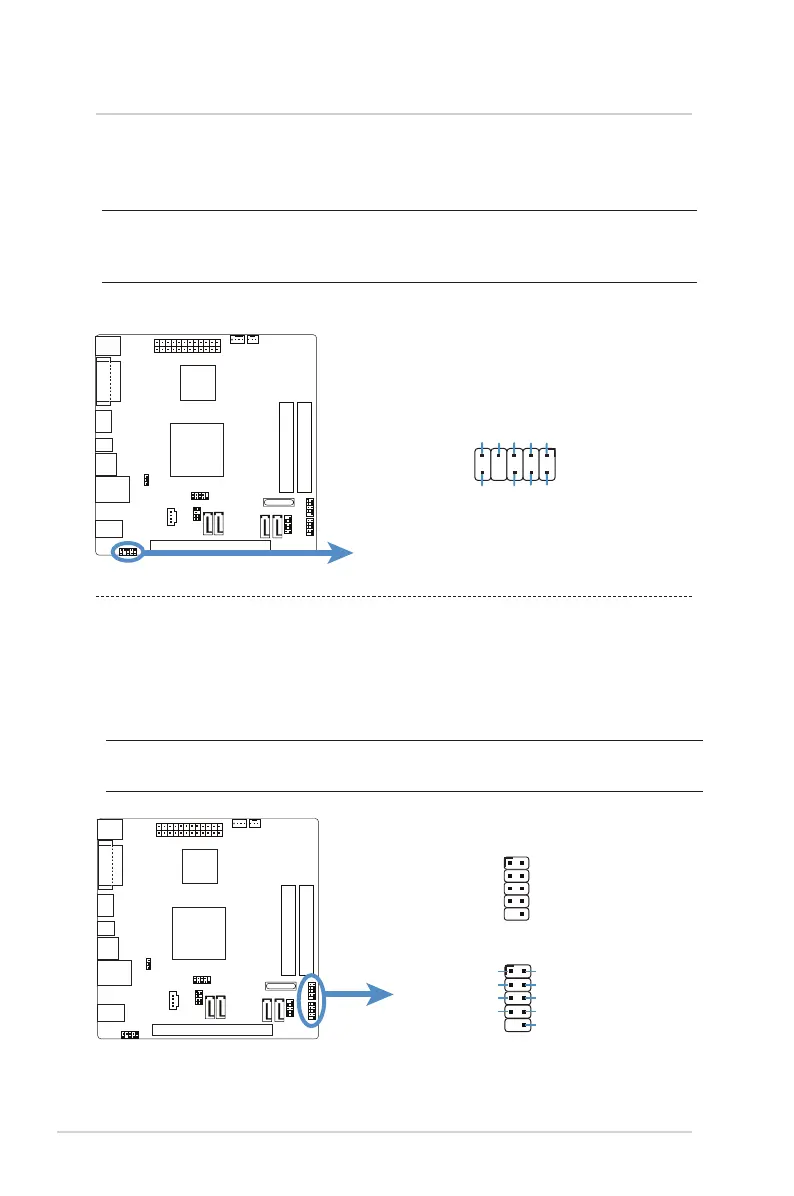

Front panel audio connector
This connector is for a chassis-mounted front panel audio I/O module that supports HD
Audio.
NOTE: It is recommended that you connect a high-denition front panel
audio module to this connector to utilize this motherboard’s high-denition
audio capability.
USB connectors (dual ports)
These connectors are for USB 2.0 ports. Connect a USB module cable to any
of these connectors, then install the module to a slot opening at the back of the
system chassis. These USB connectors comply with USB 2.0 specications which
support up to 480 Mbps connection speed.
WARNING: Never connect a 1394 cable to the USB connectors. Doing so
will damage the motherboard!
USB*(-)
USB*(+)
USB*(+)
USB*(-)
Ground
Ground
SBV
SBV
NC
F_USB1
F_USB2
MIC*_L
MIC*_R
LINE*_R
Ground
Ground
LINE*_L
JD_LINE*
JD_MIC*
FP_PRES#
F_AUDIO
