IPX7A-ION Motherboard Reference Guide 17

7 Connectors

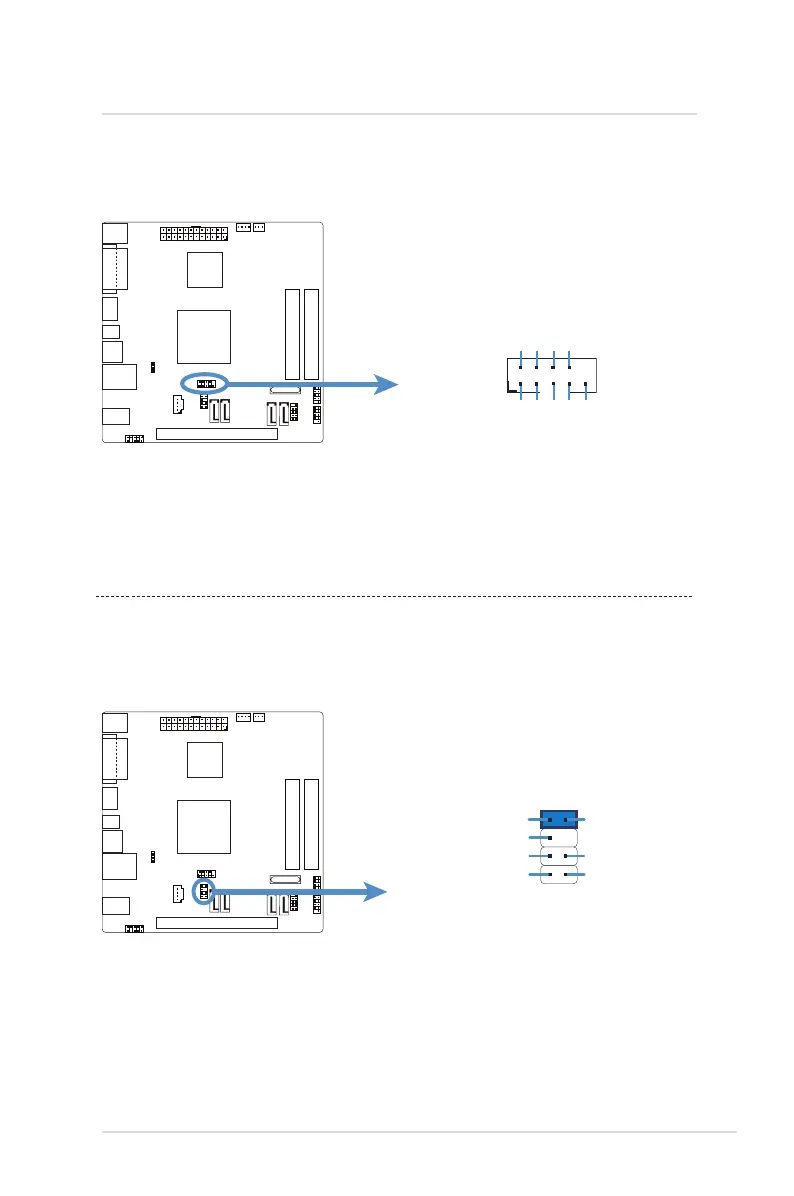

Internal serial port connector

This connector is for a serial (COM) port. Connect the serial port module cable to

this connector, then install the module to the system chassis.

COM1

DDC*#

TTXD*

Ground

RRTS*#

RRXD*

DDTR*#

DDSR*#

CCTS*#

RRT*#

ROM RECOVERY

Ground

3VSB

SPI_CS#

SPI_MOSI

SPI_MISO

SPI_CLK

ROM recovery connector

This connector allows qualied technicians to reload rmware into the SPI boot

ash in case there is problem with the data.
