2 THEORY OF OPERATION
2.1 BALANCE OPERATION
This chapter contains information on the basic operation of the balance, mechanical descriptions of the
Transducers and a block diagram description of the circuitry.
Exploded view drawings are included in chapter 5 which identifies all mechanical components of the balance. The
descriptions in this manual refer to the name of the components identified on the exploded view drawing with the
numbered callout.
With power applied, press
, all segments will appear briefly followed by a software revision number (when
plugged in first time) or after a power interruption and then * 0.00g. Allow 20 minutes warm-up time. When the
balance is first turned on, it can be used to weigh in grams or tare items without setting the menus.
2.2 OVERVIEW OF THE CONTROLS

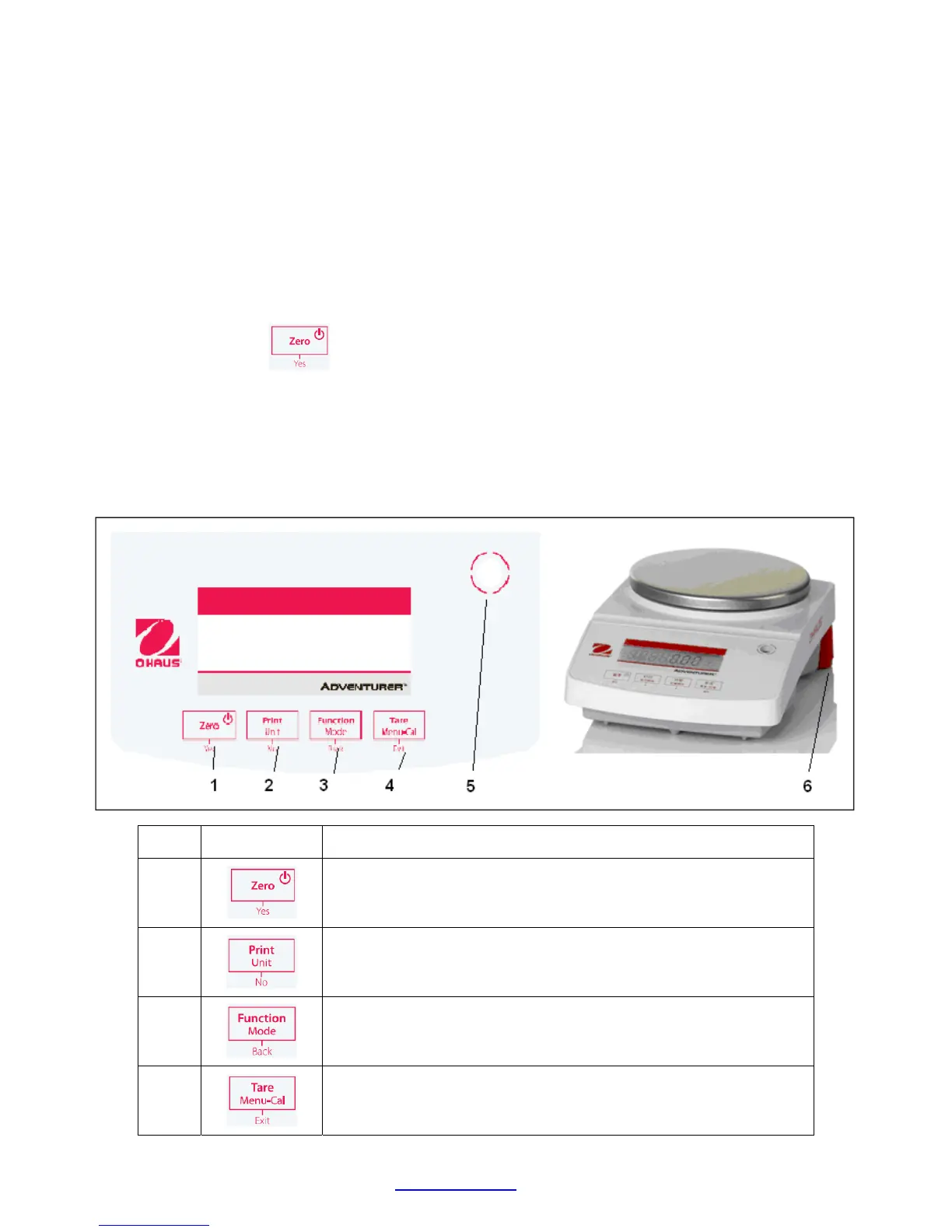

No. Button Function and Description
1
Short press－>Power on /Zero/ Confirm and next to sub-menu
Long press－>Power off
2
Short press－>Print result /Next to sub-menu
Long press－>Switch Unit
3
Short press－>Selected menu in main-menu
Hold press－>Change to other weighing mode
Hold press－>Set present mode parameter
4
Short press－>Tare/Exit to menu
Long press－>Go into Cal menu/Select other menu
