This chapter describes the function of the operator panel on your printer. It is useful to
describe the Printer Menu Setup Tool at this point as it provides the B410d and B410dn,
the equivalent of the menu control panel on the B420dn, B430dn (See “Printer drivers” on
page 37 for installation of the Printer Menu Setup Tool.)
B410
D
AND
B410
DN
O
PERATOR
PANEL

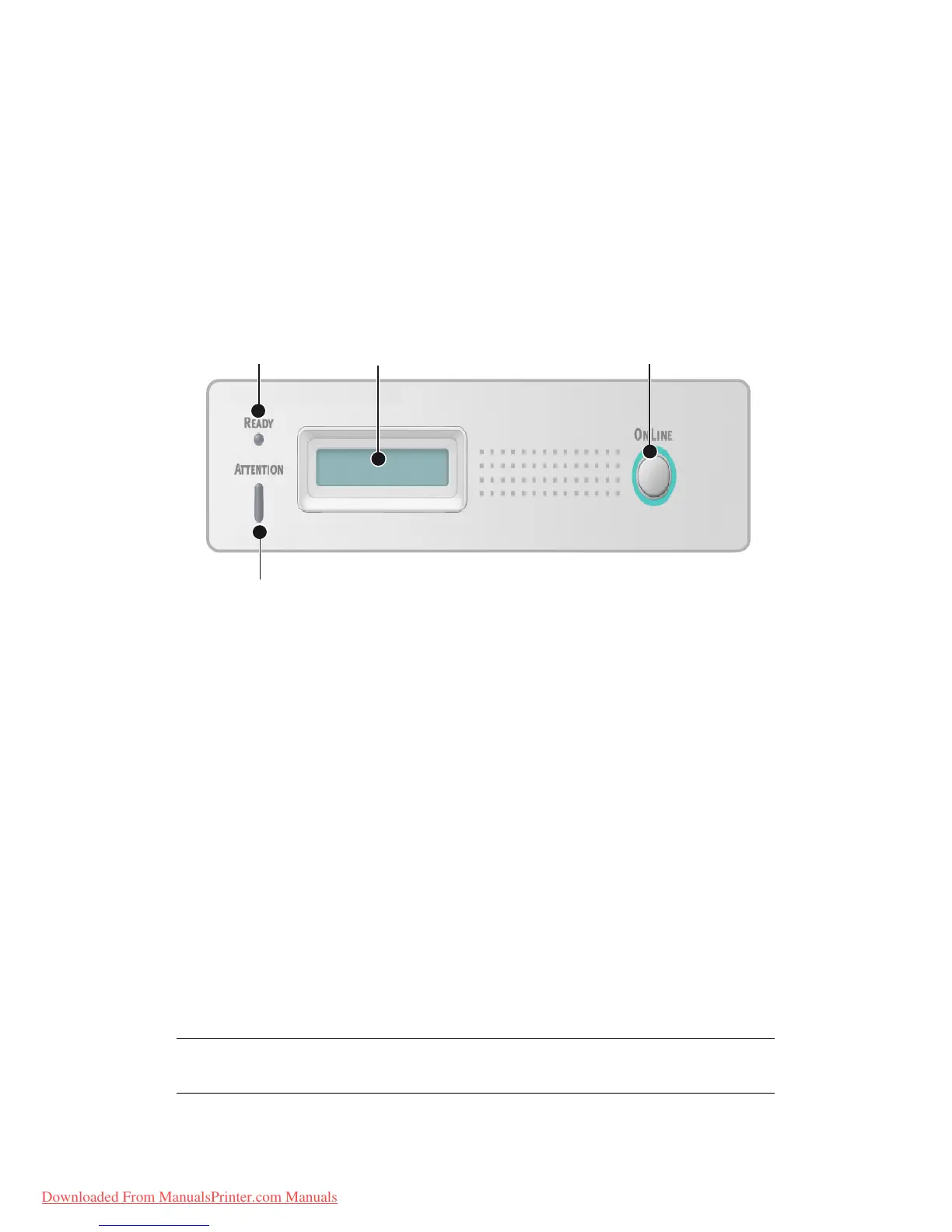

The B410d and B410dn operator panel consists of 2 indicating LEDs, an LCD (3) and an
Online (4) button. The LEDs indicate Ready (1) and Attention (2).
LED
INDICATORS
The LED indicators show the status of the printer and have three operating conditions as
follows:
> Indicator off
> Indicator on
> Flash
Both LED indicators come on momentarily when power is switched on using the main power
switch.
Ready LED (green)
> Indicator on - the printer is on-line and ready to receive data.
> Indicator off - the printer is off-line and cannot receive data.
Attention LED (red)
> Indicator on - this indicates a warning, (e.g. low toner).
> Indicator off - this indicates normal condition.
The meaning of the indicator LEDs when they flash (x) is summarised as follows:
NOTE
The table below is also applicable for the B420dn and B430dn models.
1
3
4
2
