Printer components > 9
P
RINTER
COMPONENTS
Apart from the Operator panels, which are described in the next chapter, the B410d/
B410dn/B420dn/B430dn printers look similar from the outside. The important components
are identified in the representations below.

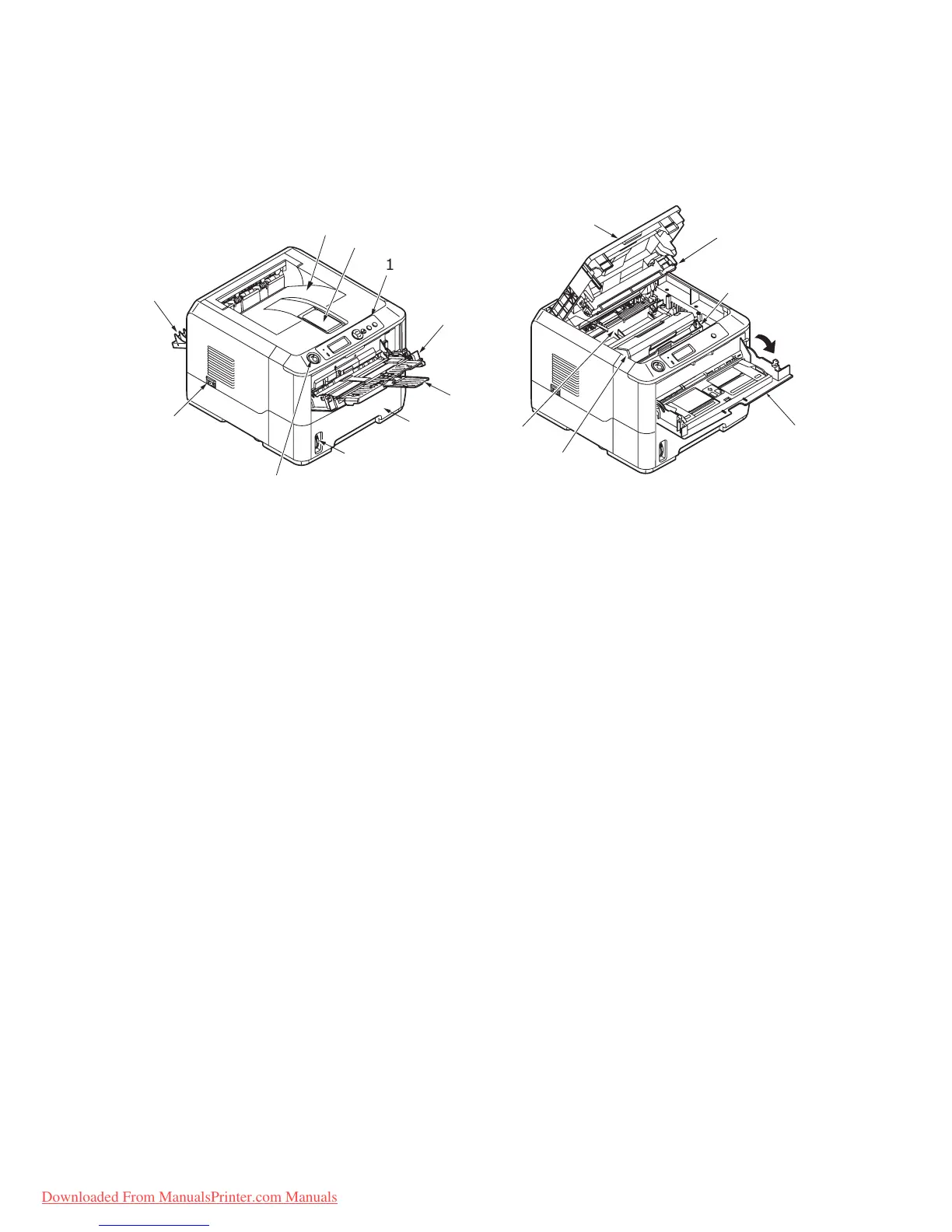

1. Operator panel (B430dn shown)
2. Output Stacker (150 sheets, face down)
3. Output Stacker extension
4. Top cover release button
5. Multi Purpose Tray (only for B420dn, B430dn.; 50 sheets)(shown in open position)
6. Multi Purpose Tray extension
7. Paper Tray (250 sheets for B410d, B410dn and B420dn, B430dn; 530 sheets for
B420dn.)
8. Paper Tray level indicator
9. ON/OFF switch
10. Rear Output cover
11. LED array
12. Image drum
13. Manual Feed Tray (only for B410d, B410dn and B420dn; single sheet feed) (shown
in open position)
14. Toner cartridge
15. Fuser unit
16. Top cove r
2
4
8
7
5
9
3
6
10
