Troubleshooting > 73

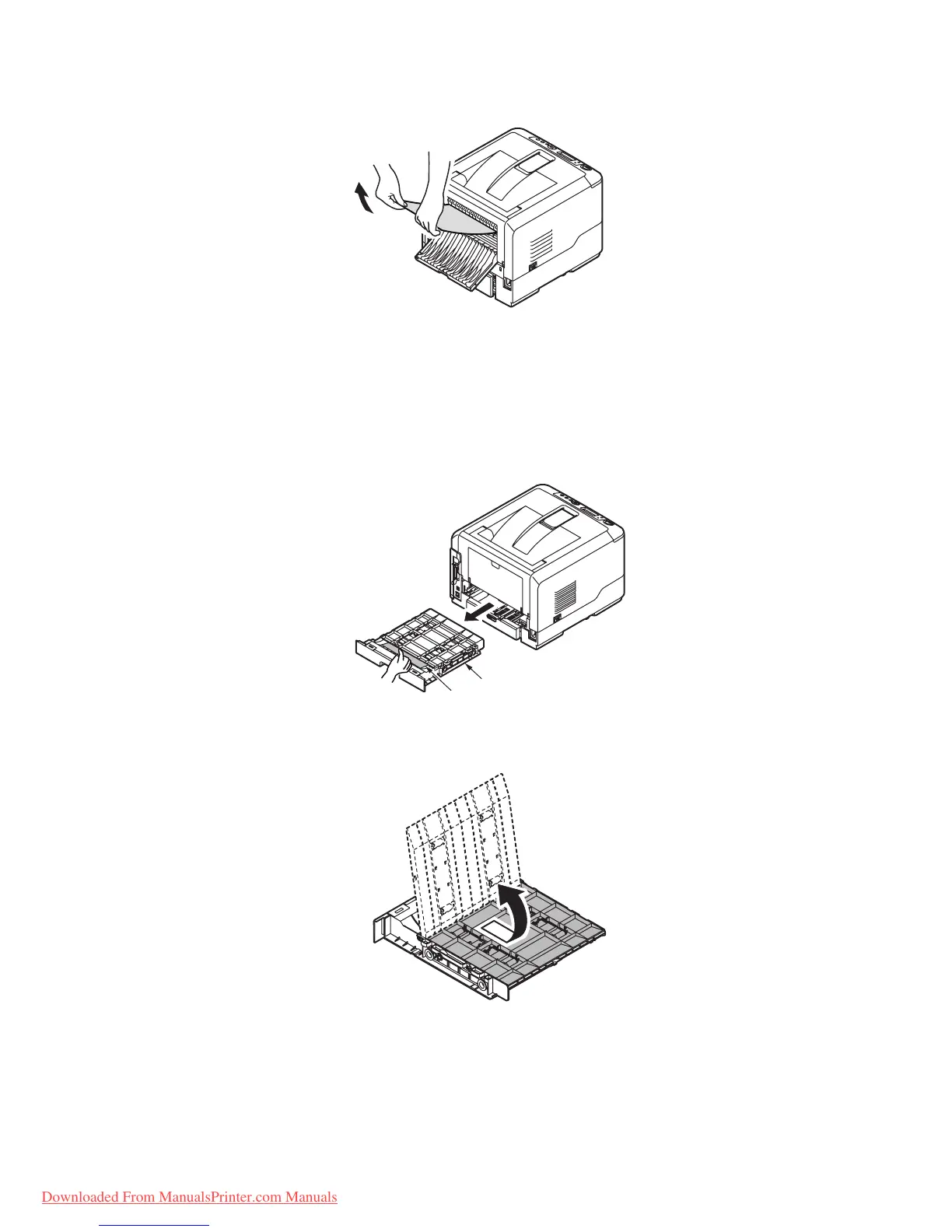

> Pull out any paper found in this area.
> If the paper is low down in this area and difficult to remove, it is probably still
gripped by the fuser. In this case, raise the top cover, reach around and press
down on the fuser pressure release lever.
> If you are not using the rear cover, close it once the paper is removed from this
area.
8. Remove the Duplex unit (1) and check for any paper in this area. Remove any paper
and replace the duplex unit.
> If the paper is difficult to remove, push the cover in the arrow direction, raise it
and remove the paper.
9. Open the Multi Purpose Tray (1) (Manual Feed Tray for B410d and B410dn).
1
2
