First press Second press Third press Fourth press
1 in hundreds place 2 in tens place 3 in ones place
First press Second press Third press Fourth press
8 in hundreds place 0 in tens place 7 in ones place

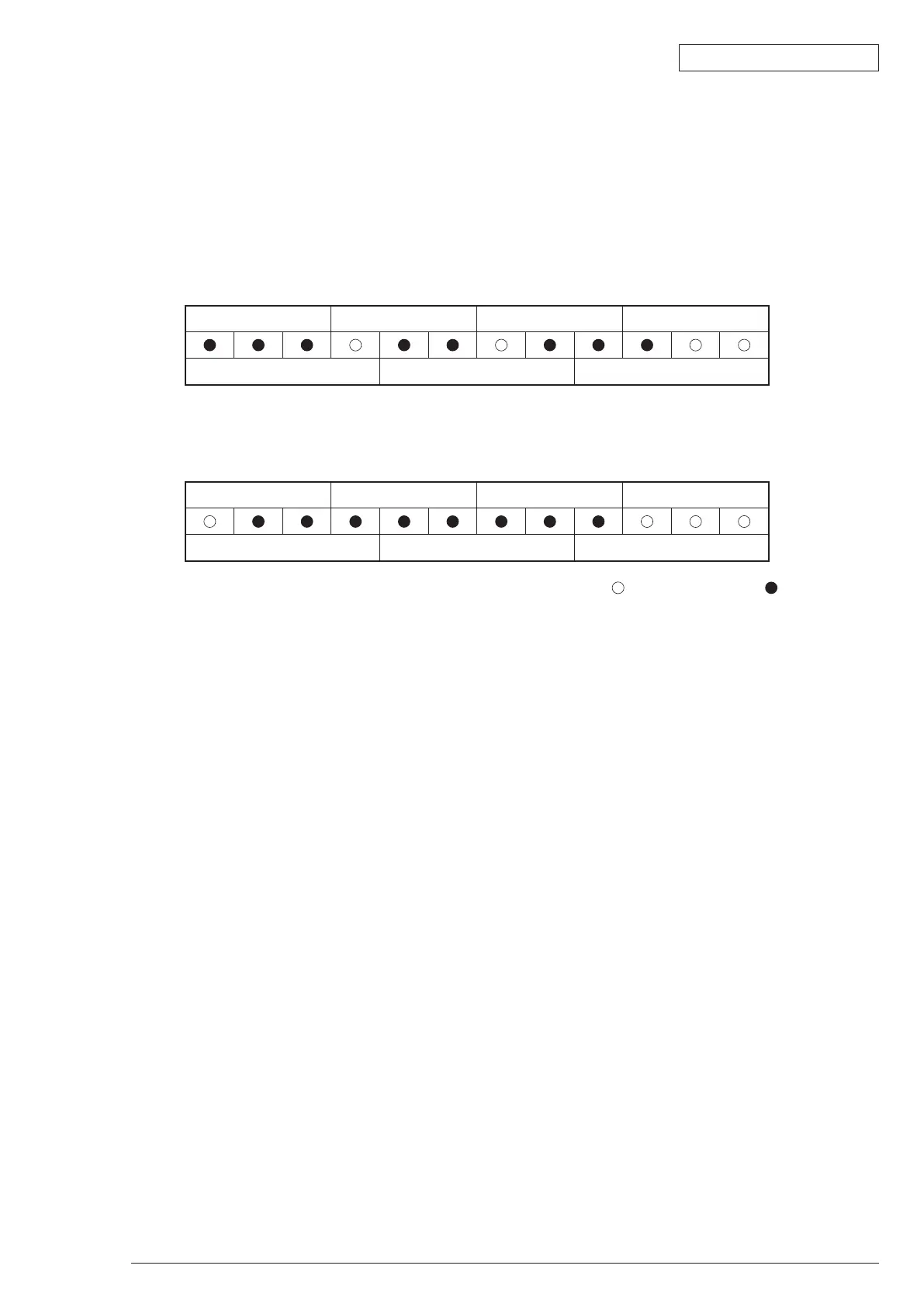

Lighting pattern of LEDs, which indicates Error Code 123
Lighting pattern of LEDs, which indicates Error Code 807
LEDs: Ready, then Manual and the Error from left. White circle (
): On. Black circle ( ): Off.
Error Code Indication
Upon an error with the printer, its Ready/Manual/Error LED starts blinking. Then, the status of the LEDs is
changed every time a switch on the printer is pressed. Each lighting pattern of the LEDs indicates an error
code. The code is a three-digit decimal number, expressed using twelve bits (three LEDs x 4). With
the fifth press of the switch, the LED that started blinking, i.e. turned to a blinking state, with the error
returns to the blinking state.
