Oki B2200 Maintenance Manual

Oki Data CONFIDENTIAL
43641601TH Rev.1
95 /
Contact No. Signal Function
1 vbus
Power supply (+5V) (Red)
2 D-
Data transfer (White)
3 D+
Data transfer (Green)
4 GND
Signal ground (Black)
Shell Shield

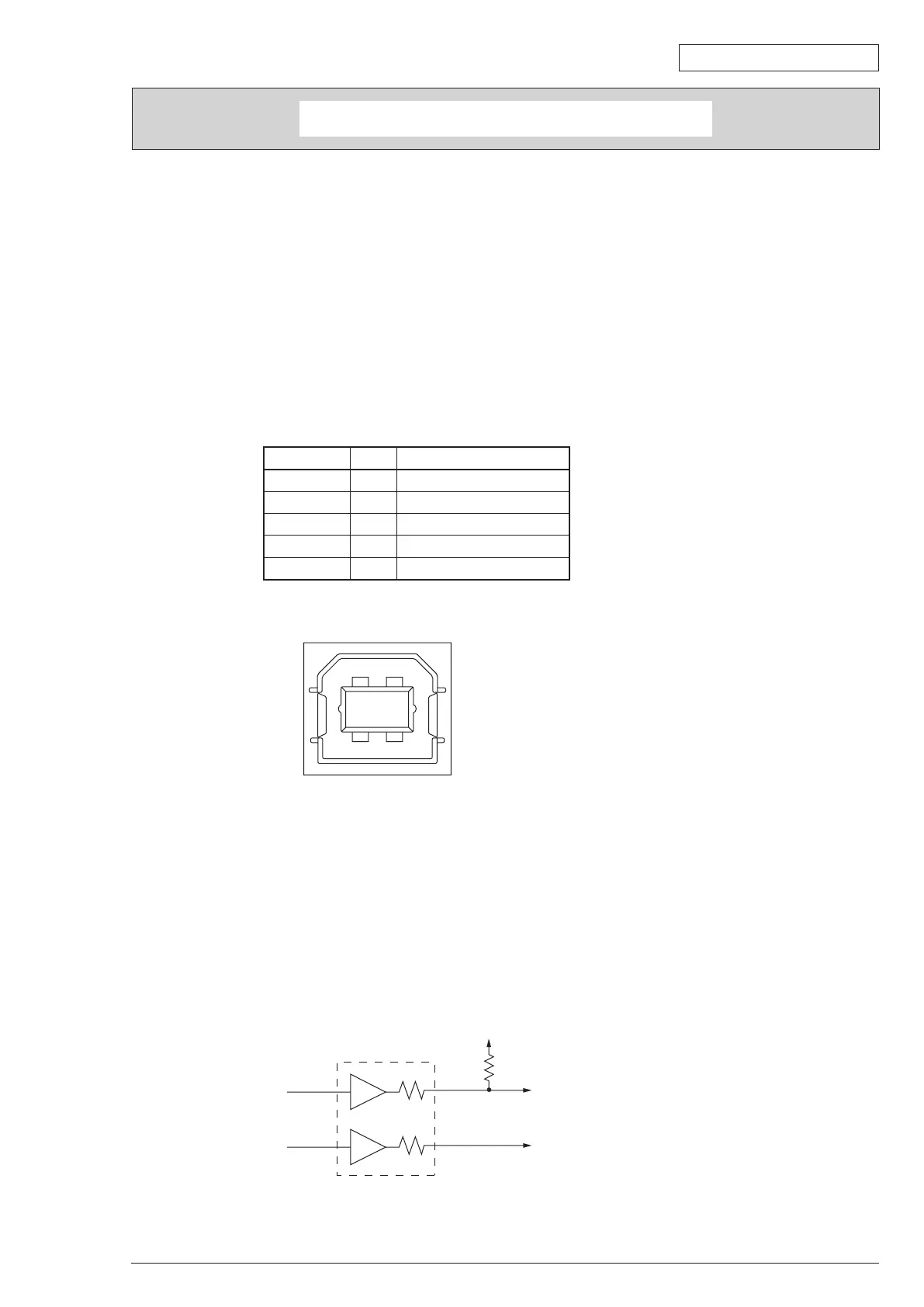

APPENDIX B USB INTERFACE
(1) Connector
• Printer side : B receptacle (female) (Upstream port)
USB-4R-D14T-1 (made by J.S.T. Mfg.) or equivalent
• Cable side : B plug (male)
(2) Cable
• Use a USB2.0 cable with a length of 2.0 m max. (A shielded cable is recommended.)
Note: No cable is supplied with the printer.
(3) Interface Signal List
(4) Connector Pin Arrangement
2
3 4
1
(5) Mode and Type
• Full-speed transmission mode
• Self-powered device
(6) Data Signaling Rate
• Full speed: 12 Mbps
(7) Interface Circuit
3.3 V
1.5 kΩ
Rs = 22 Ω
TxD+
Rs
Full-speed
Buffer
Rs
TxD-

Oki B2200 Specifications

Performance

Print Speed	21 pages per minute
CPU	266 MHz
Time to First Page	6.0 seconds
Print Resolution	1200 x 600 dpi
Duty Cycle	15, 000 pages per month

Memory

Standard/Maximum RAM for B2200n and B2400n	16 MB
Standard/Maximum RAM for B2200 and B2400	8 MB

Paper Handling

Main Paper Tray Capacity	150 sheets
Manual Bypass Capacity	1 sheet
Paper Size	3.5" x 5.8" min. to 8.5" x 14" max.
Standard Paper Output	30 sheets
Paper Weight for Main Tray	16 lb. – 28 lb. bond
Paper Weight for Manual Bypass	16 lb. – 32 lb. bond

Power Consumption

Power Consumption Peak	660W
Power Consumption Typical Operation	360W
Power Consumption Idle	60W

Weight and Dimensions

Dimensions	12.6" x 8.0" x 7.1" (32.0 cm x 20.4 cm x 18.1 cm)
Weight	9.3 lb. (4.2 kg)
