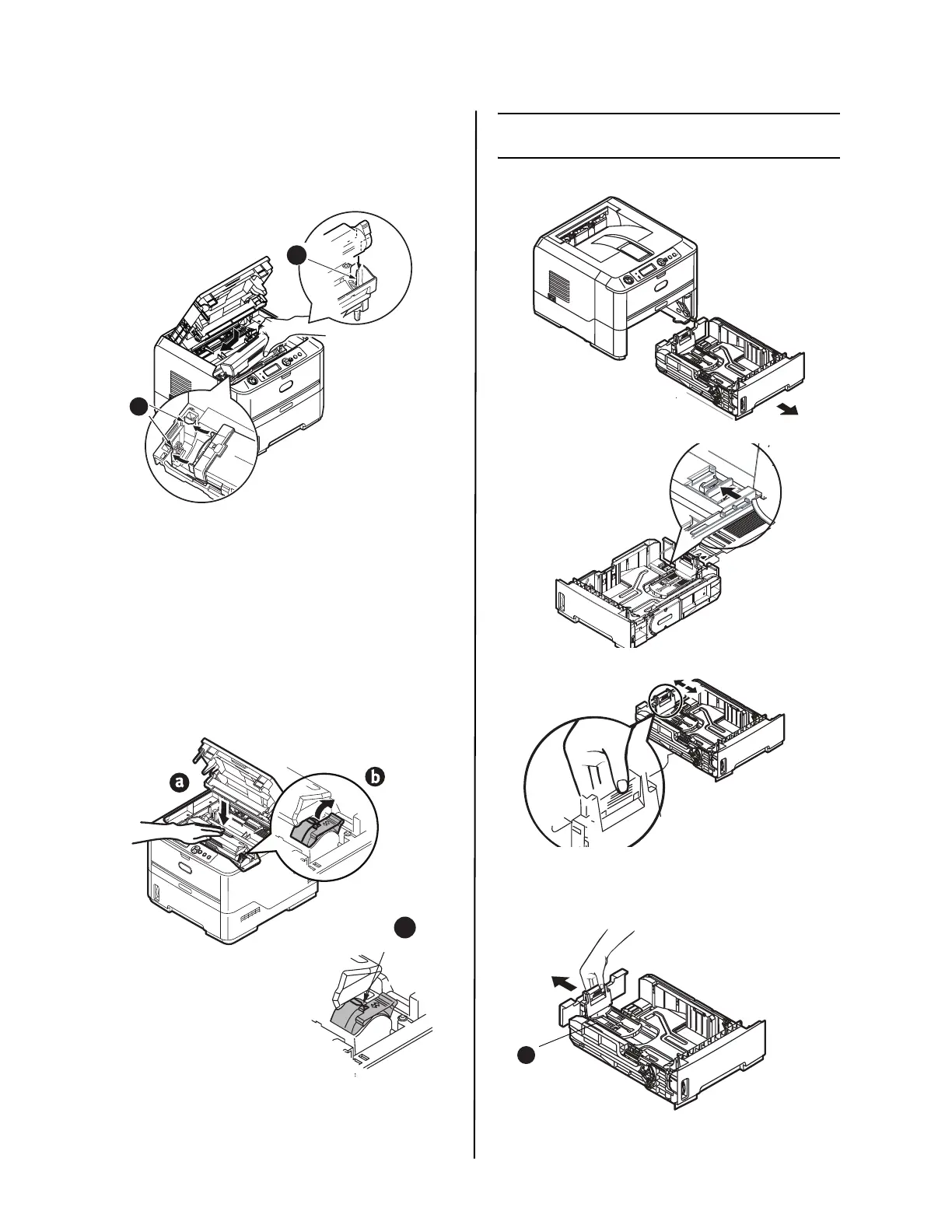

4 Hold the cartridge, peel-off side down,
with the (blue) knob on the right. Tilt the
cartridge slightly and insert the left side
under the protrusions (a) on the image
drum cartridge.
5 Lower the right side, aligning the slot in
the toner cartridge with the guide post of
the image drum (b). Push the toner
cartridge down completely until it snaps
into place.
6 Holding the toner cartridge down so it
does not pop up (a), turn the (blue) knob
(b) in the direction show.
Note: The arrow on the knob should align
with the arrow on the drum
cartridge (c).
7 Close the top cover.
Load Paper
1 Pull out the paper tray.
2 Set guides to paper width.
3 Adjust guide for paper length.
Note: For legal size paper, slide the release
lever (a) to the left while pulling out
the paper guide to the LGL position.
a
b
c
a
To Next Page
