Oki C C3200 User Manual

Replacing consumable items> 64

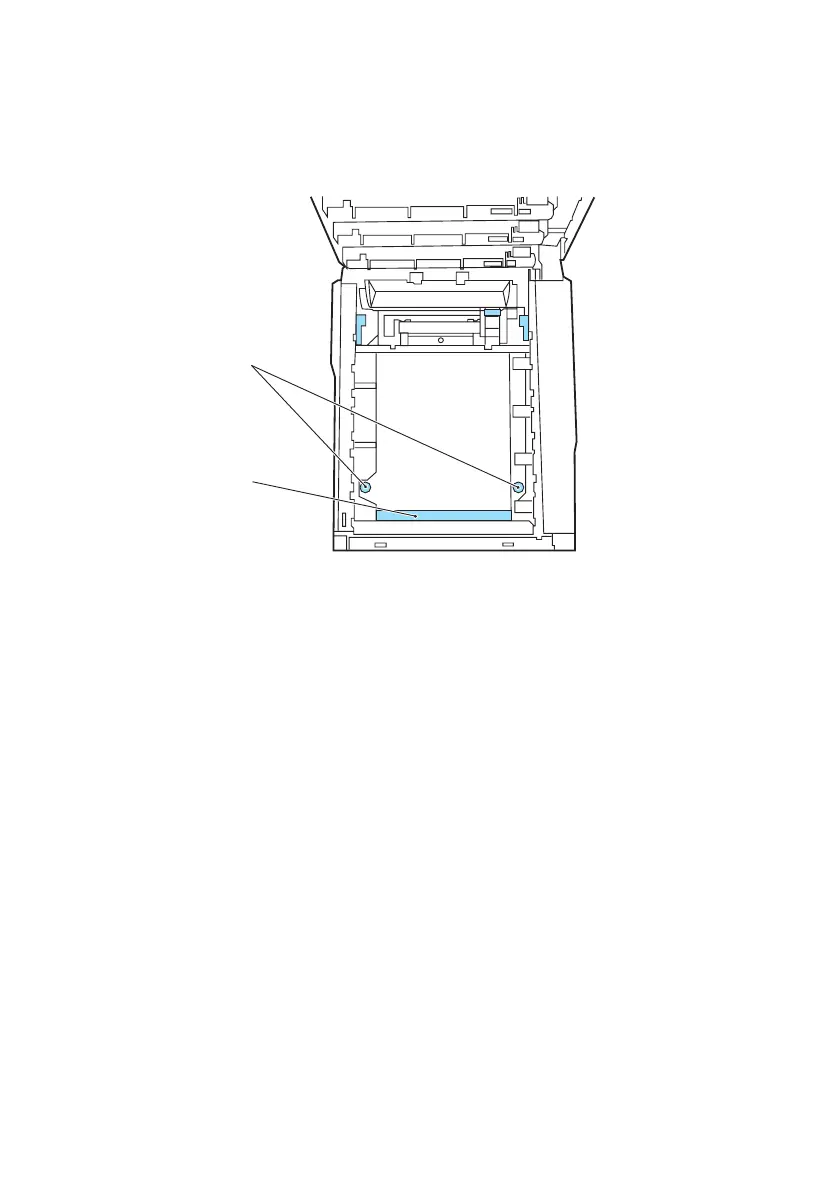

4. Locate the two fasteners (5) at each side of the belt and
the lifting bar (6) at the front end.
5. Turn the two fasteners 90° to the left. This will release the
belt from the printer chassis.
6. Pull the lifting bar (6) upwards so that belt tilts up towards
the front, and withdraw the belt unit from the printer.
7. Lower the new belt unit into place, with the lifting bar at
the front and the drive gear towards the rear of the
printer. Locate the drive gear into the gear inside the
printer by the rear left corner of the unit, and lower the
belt unit flat inside the printer.
8. Turn the two fasteners (5) 90° to the right until they lock.
This will secure the belt unit in place.
9. Replace the four image drums, complete with their toner
cartridges, into the printer in the same sequence as they
came out: cyan (nearest the rear), magenta, yellow and
black (nearest the front).
10. Finally, close the top cover and press down firmly at both
sides so that the cover latches closed.
5
6

Oki C C3200 Specifications

General

Print Technology	LED
Printer Type	Color Printer
Print Speed (Color)	20 ppm
Print Speed (Mono)	20 ppm
Resolution	1200 x 600 dpi
Monthly Duty Cycle	35, 000 pages
Duplex Printing	Manual
Media Sizes Supported	A4, A5, B5, Letter, Legal, Executive
Paper Capacity	300 sheets
Operating System Compatibility	Windows, Mac OS
Connectivity	USB 2.0, Ethernet
