Installing additional memory (C3400n only)> 126

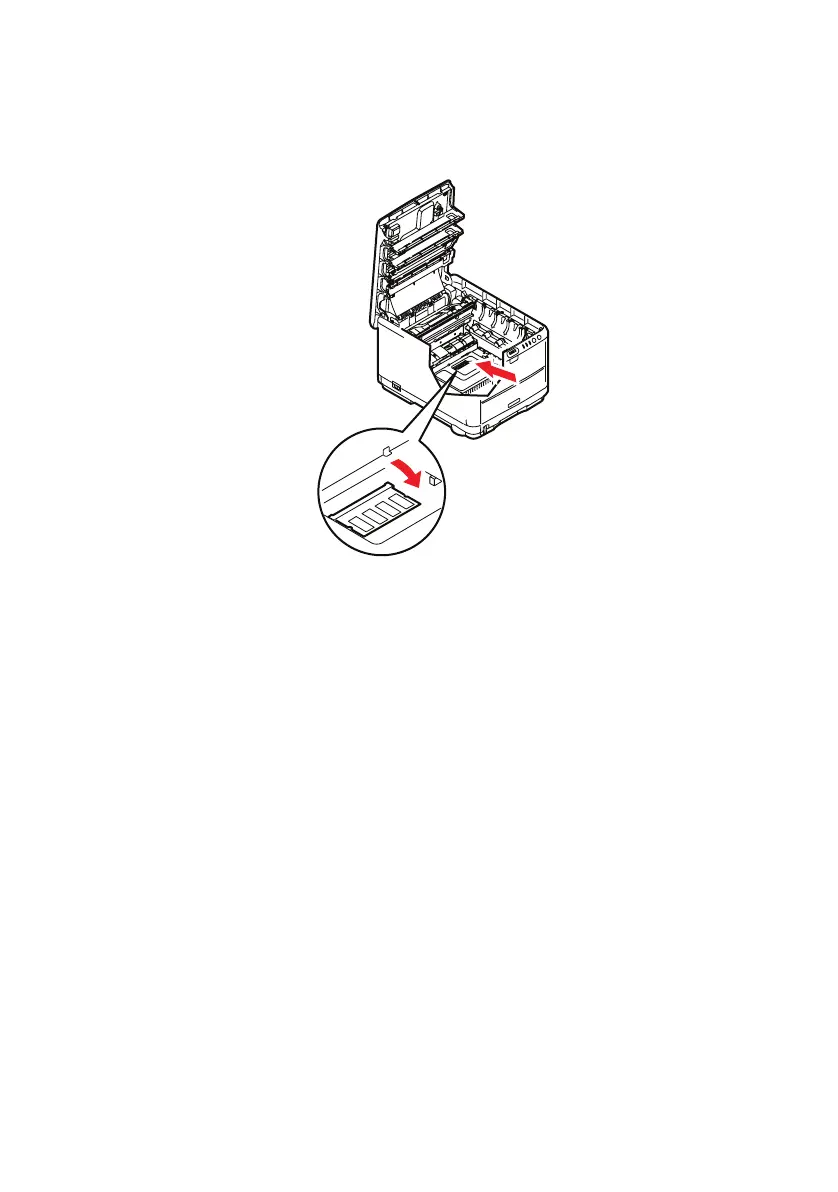

11. Gently push the board into the RAM expansion slot until it
latches in and will not go any further.
12. Close the RAM expansion slot.
13. Replace the belt and image drum units as described in
“Replacing consumable items” on page 101.
14. Close the top cover of the printer.
15. Reconnect the AC power cable and switch the printer on.
16. When the printer is ready, print a menu map by holding
down the ON LINE button on the Operation Panel for 2
seconds.
17. Examine the first page of the menu map.
Near the top of the page, between the two horizontal lines,
you will see the current printer configuration. This list
contains the figure for total memory size.
This should indicate the total memory now installed, which
should be the size of memory board you have installed plus
32MB.
