- 21 -
Paper jams
Troubleshooting
1
2
IndexMaintenance
2

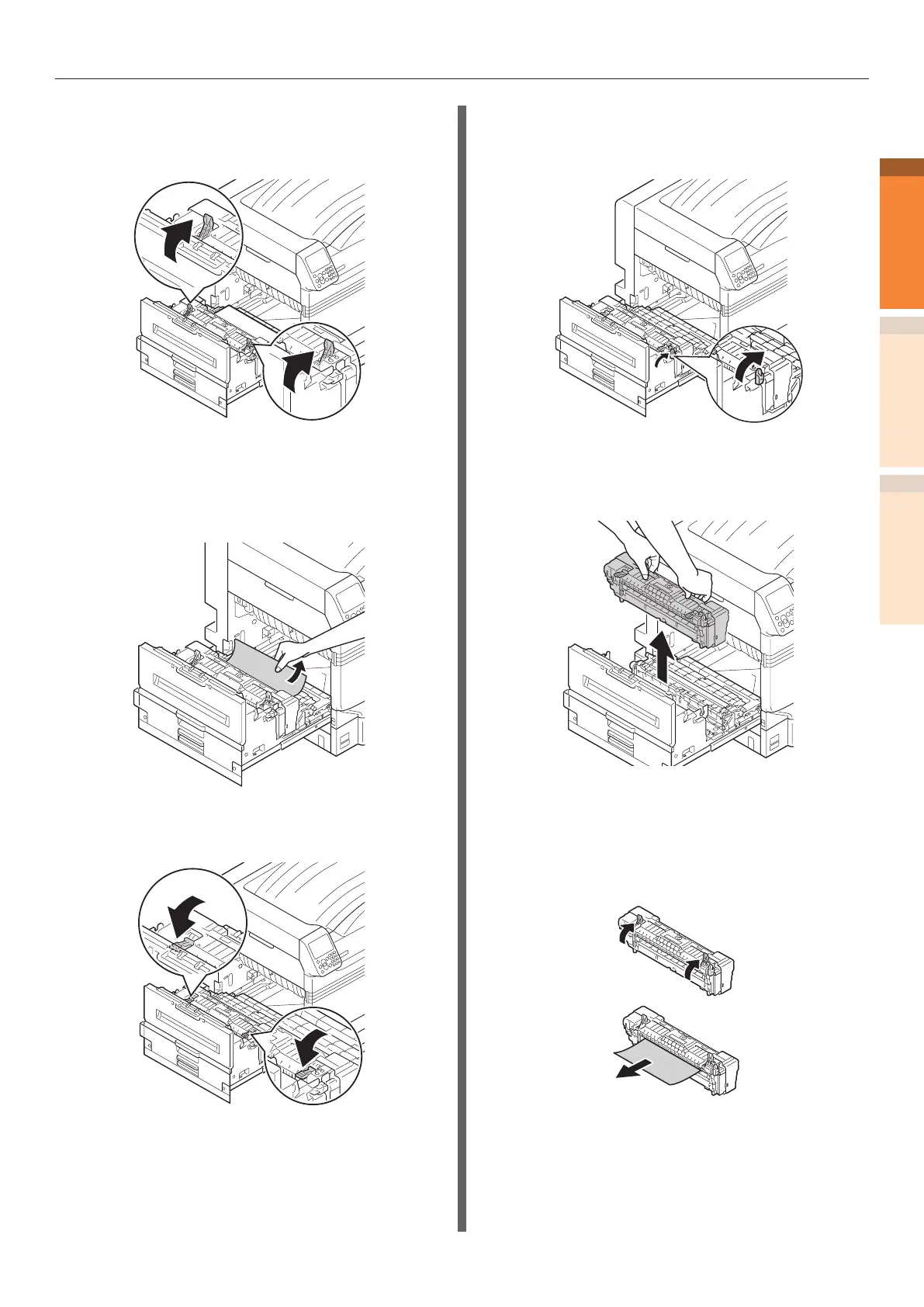

If there is remaining paper in the fuser
unit then pull up the fuser unit's jam
release lever (blue).
3
Ensure to slowly pull the remaining
paper towards the printer body
(opposite to the paper feeding
direction).
4
Push down the fuser unit's jam release
lever (blue).
5
If there is no remaining paper in the
fuser unit then pull up the fuser unit's
lock lever (blue).
6
Hold the fuser unit handle with both
hands, and remove it onto a at
surface.
7
If a paper jam occurred in the fuser
unit, raise the jam release lever (blue),
and slowly pull the paper out in the
opposite direction from the paper
operation direction.
To Next Page
