Replacing consumables and maintenance unit
- 68 -
IndexTroubleshooting
1
2
Maintenance
7

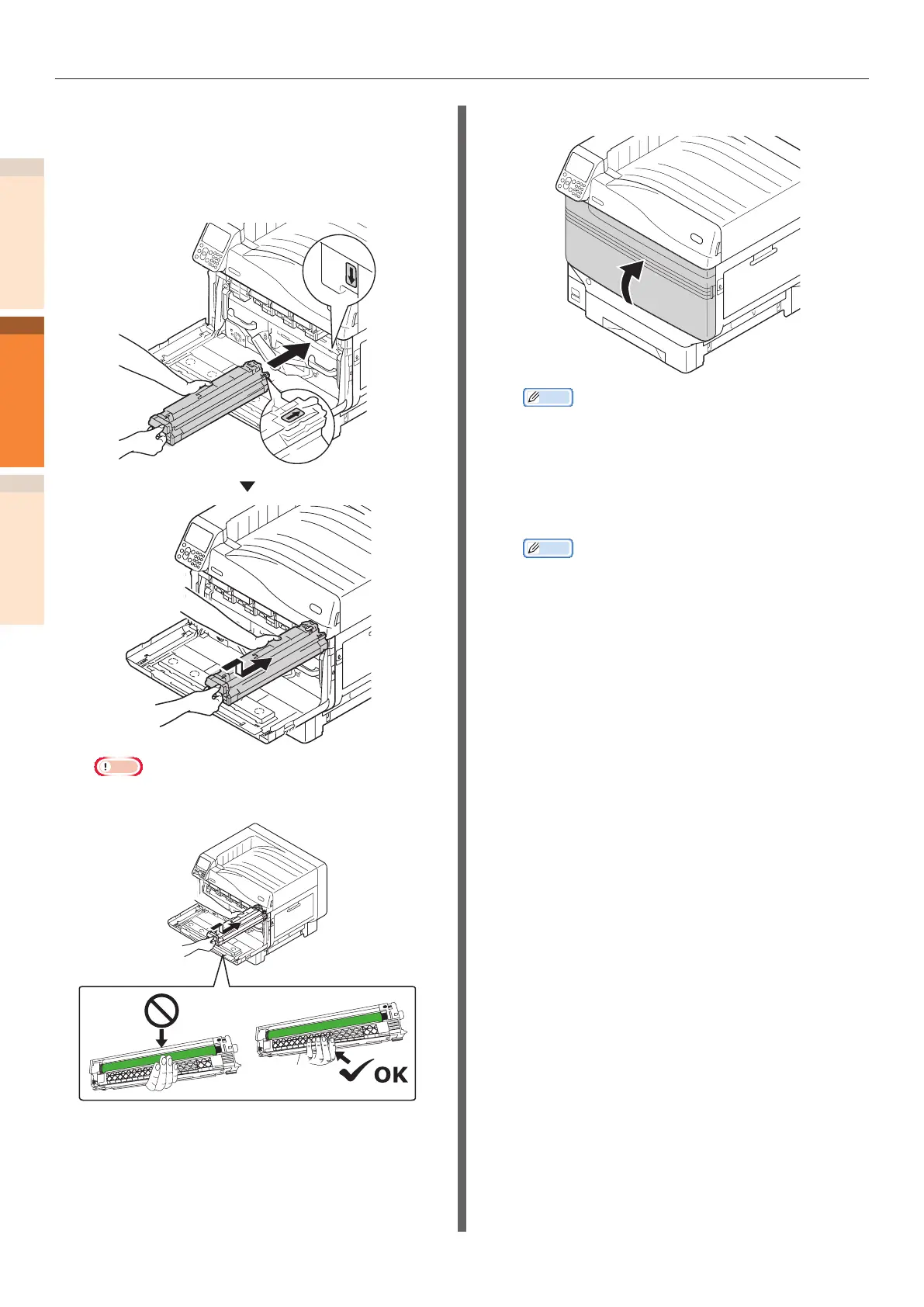

Align the image drum and arrow label
(red) of printer, slowly insert in the slot
taking care that your hand does not
touch the photoreceptor (green) below,
and rmly push it inside.
Note
z
Be careful not to touch or scratch the image drum
(green cylinder).
8
Close the front cover.
Memo
z
If Error709 appears after replacing the image drum,
refer to “If replace consumables messages are
displayed”(P.38) of this manual.
9
Please support recycling of the used
image drums.
Memo
z
When disposing of the used image drums in
unavoidable circumstances, put it in a plastic bag,
and ensure to dispose according to the instructions
provided by the local municipality.
