C9800 User’s Guide> 93

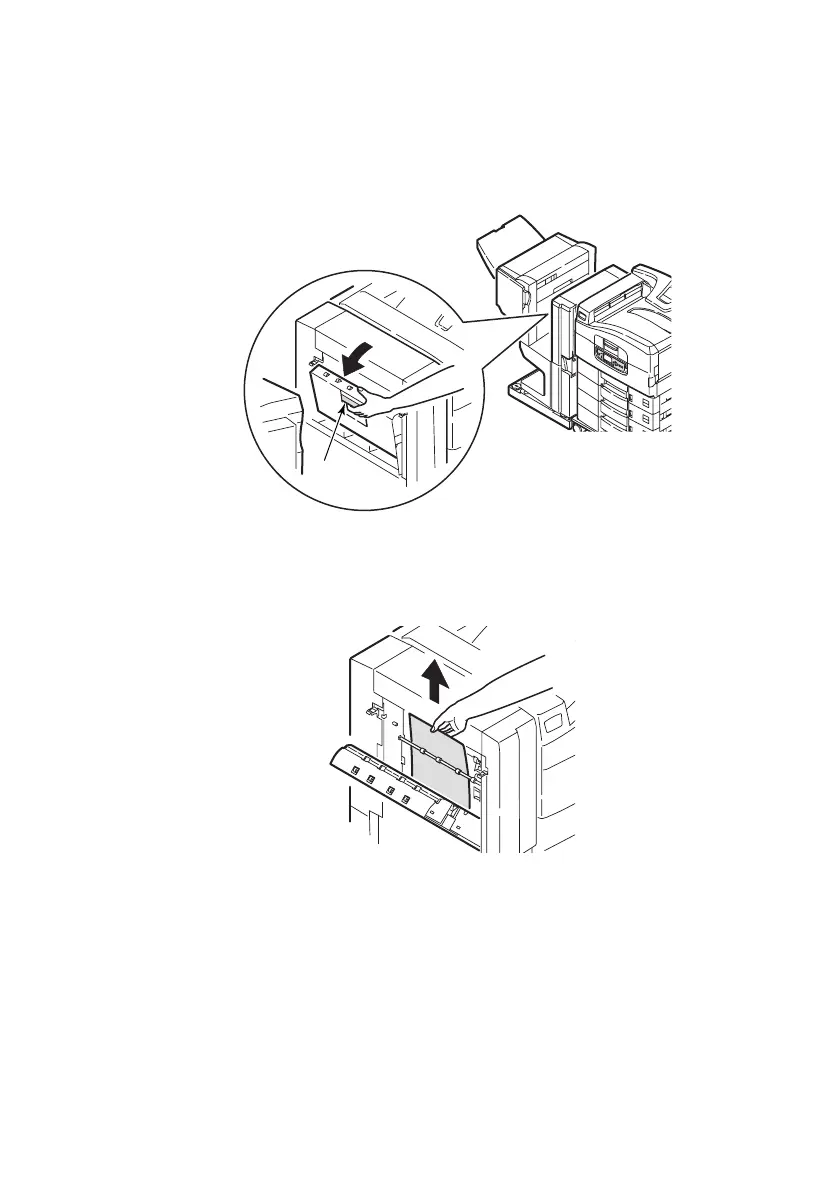

2. Squeeze the recessed handle (2) and open the left side

cover of the Inverter.

3. Carefully remove any jammed paper.
