21 - English

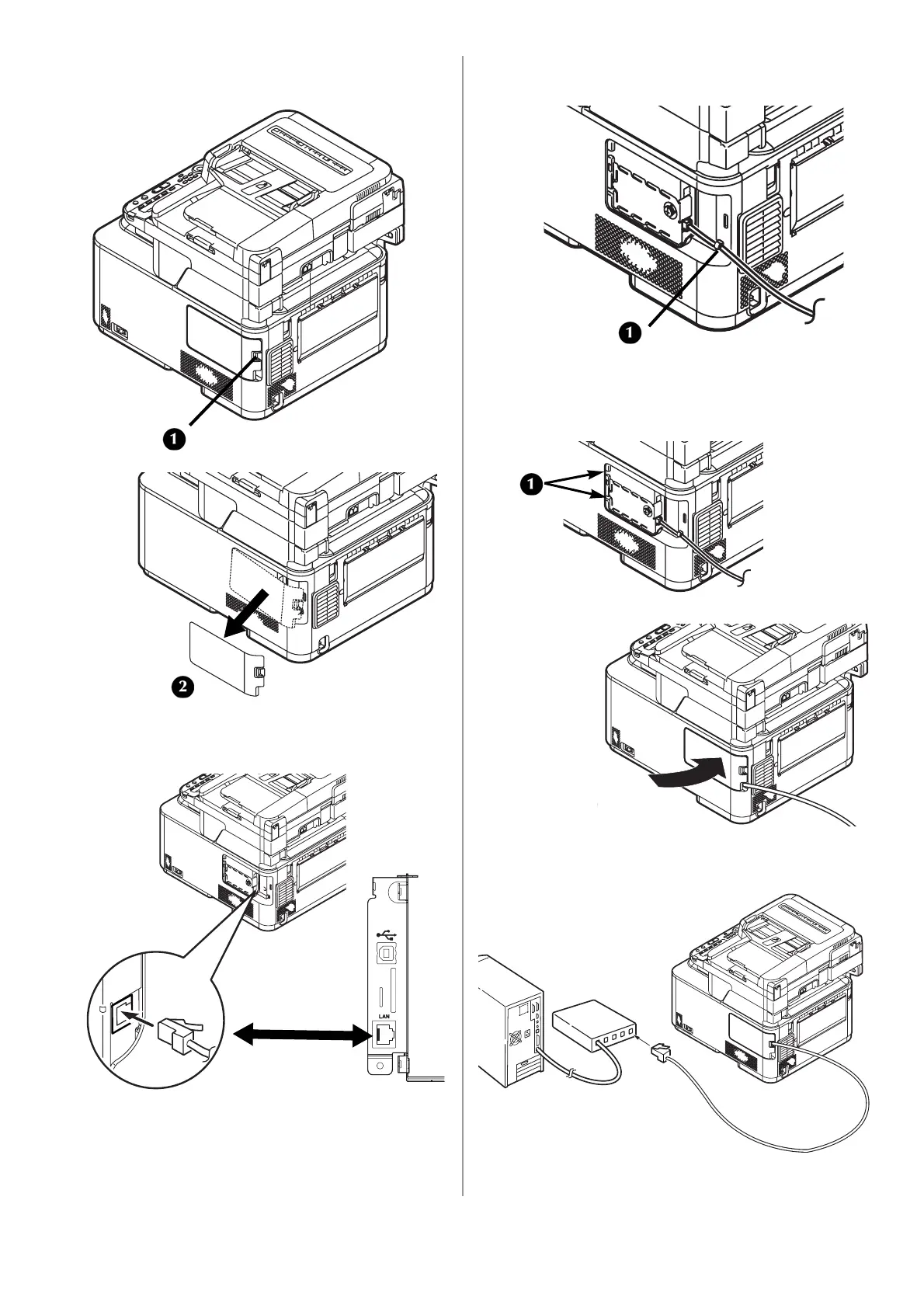

3 Depress the latch (1) on the right side of the
machine and remove the access cover (2).
4 Plug one end of the Ethernet cable into the
LAN connection on the machine.
5 Secure the Ethernet cable under the hook (1)
on the machine.
6 Fit the tabs on the side cover into the slots (1)
on the machine housing and snap the cover
back into place.
7 Connect the hub to a computer, then plug the
other end of the Ethernet cable into the hub.
