Oki IP-6620 - Loading the media on the printer

11
(1)
(2)

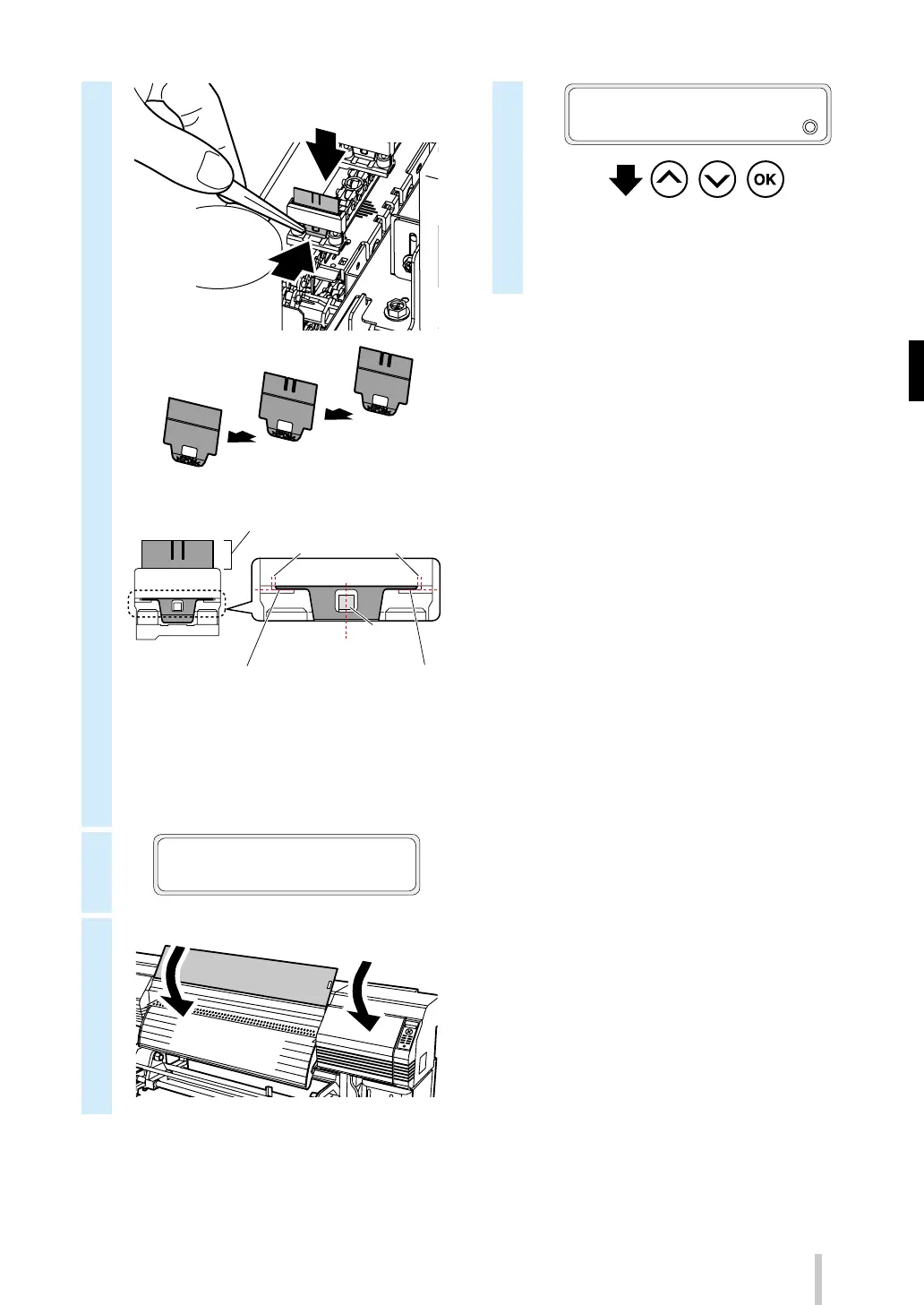

(3) Sponge
(2) Rubber
(1) Rubber
Protrusion
The protrusion is in the center
Parts are in contact at both the right and left side
s
The spaces on the right and left are equal
They are parallel
IP6-259 Wiper blade
* Be sure to install the blades in the right order.
* IP6-259 is also included in the IP6-271 daily
maintenance kit A.
12
AFTER REPLACING WB
CLOSE COVERS
13
(1)
(2)
14
REPLACED WIPE BLADE?
2
YES
, ,
* In addition to daily checks, replace the wiper
blades also when the printer displays a
message that prompts you to do so.
