Machine Setup
1 Machine Setup
This chapter explains the initial setup for the machine, including the names of the machine
components, how to unpack and install the machine, how to turn on/off the machine, and how to load
paper into tray 1.

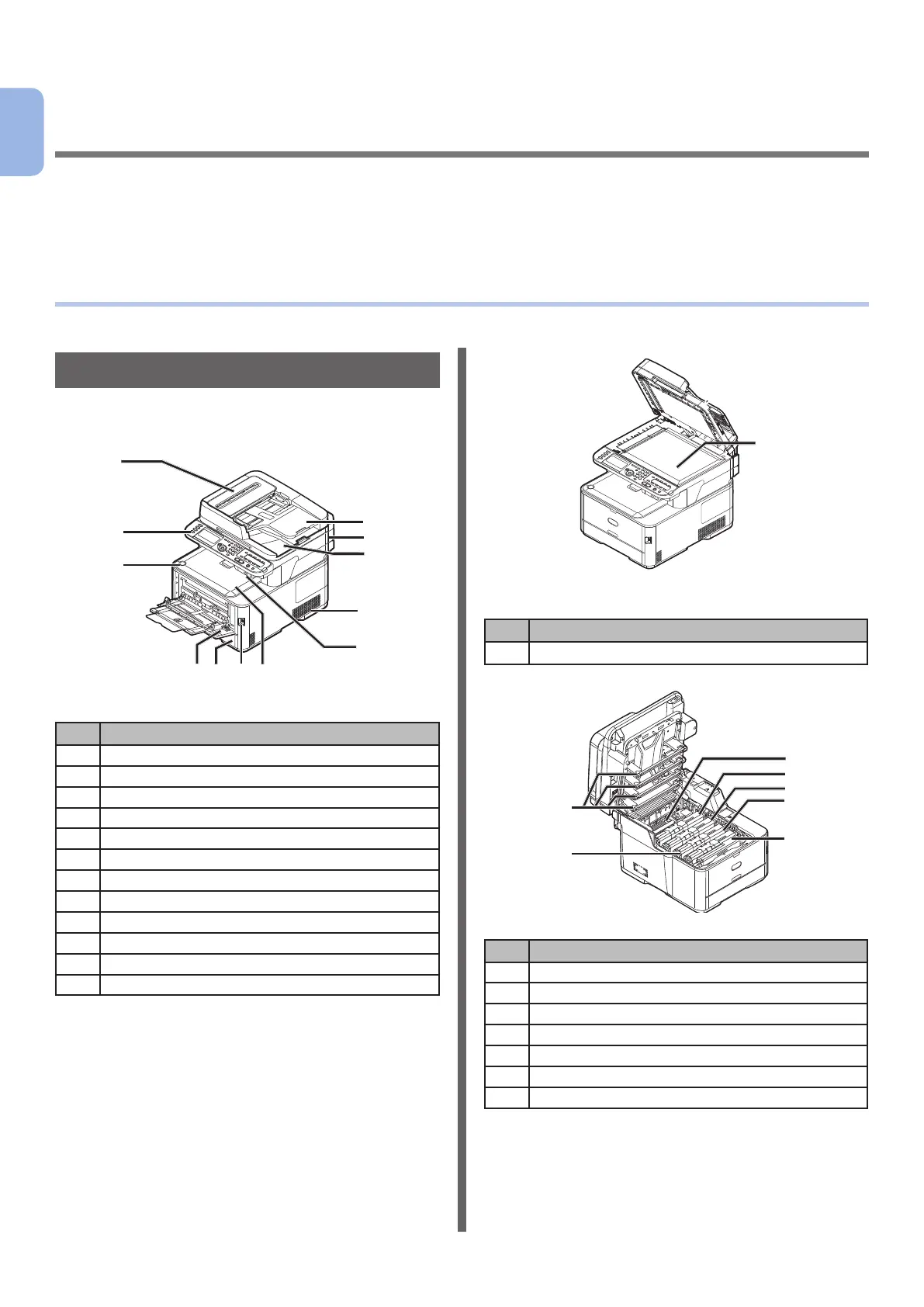

●● Names of Components
This section shows the names of the components of the machine and operator panel.
Machine
The following shows the names of the machine
components.
2
1
11
10
9
8
7
6
5
4
3
12
No. Name
1 Top cover
2 Power switch
3 Tray 1
4 Multipurpose (MP) tray
5 Top cover open button
6 Operator panel
7 Auto document feeder (ADF) cover
8 Document tray
9 Scanner unit
10 Document glass cover
11 Air vents
12 USB port
13
No. Name
13 Document glass
18
20
19
No. Name
14 Fuser unit
15 Toner cartridge (Y: yellow)
16 Toner cartridge (M: magenta)
17 Toner cartridge (C: cyan)
18 Toner cartridge (K: black)
19 Image drum unit
20 LED head (four heads)
16
15
17
14
To Next Page
