Microline 8480FB User’s Guide
Maintenance • 78

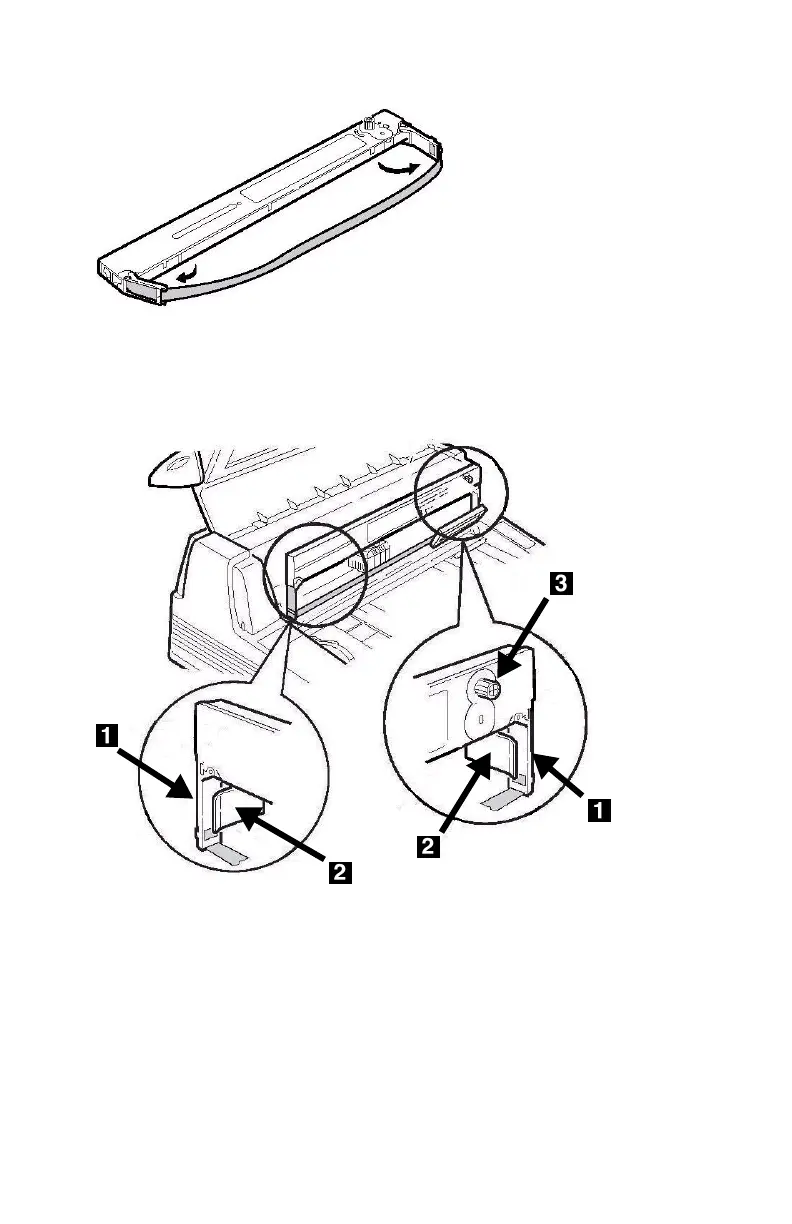

6. Swing out the ribbon arms on either of the cartridge until they
snap into place.
7. Feed the ribbon arms (1) in beside the guides (2), position the
take-up knob (3) over the pin, then press the cartridge in firmly
at either end.
