Microline 8480FB User’s Guide
Maintenance • 79

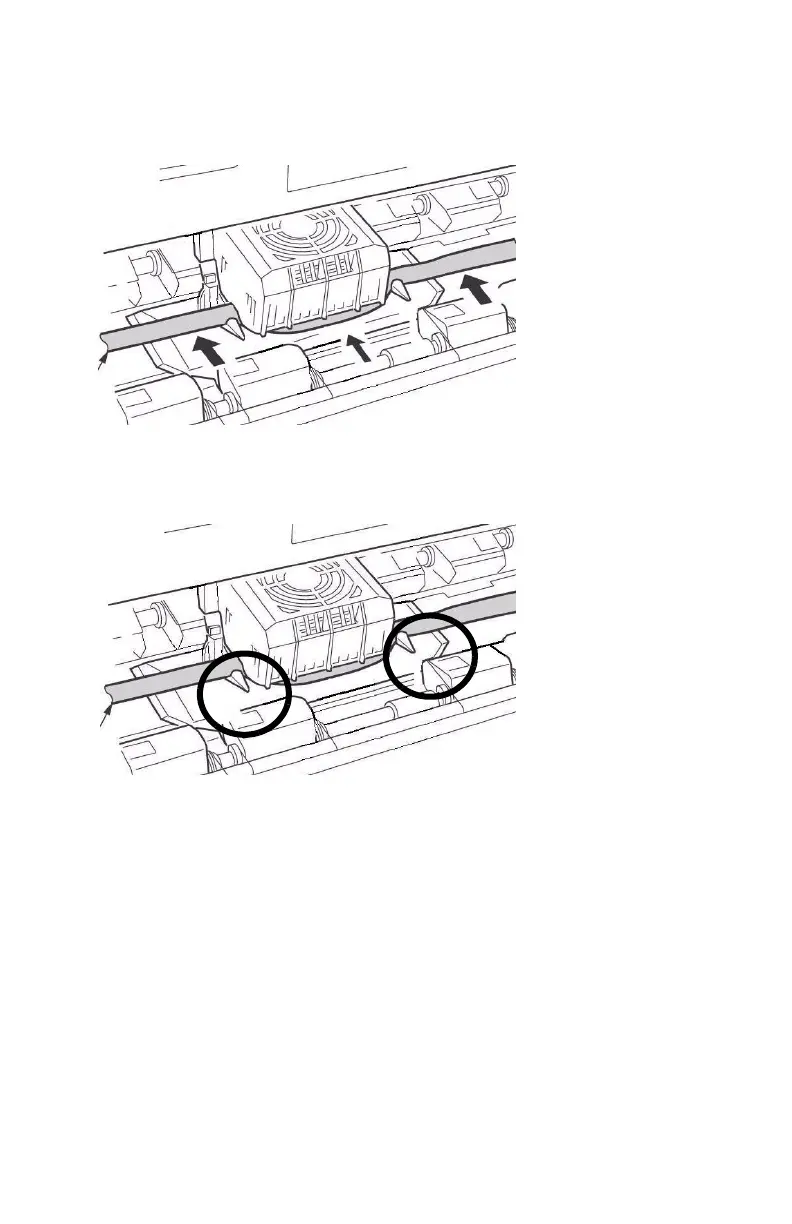

8. Pull the ribbon out a bit at the left end of the cartridge to give
some slack, then slide the ribbon underneath the printhead. Be
careful that the ribbon is not twisted, folded or pulled off the
ribbon arms during this process.
9. Make sure the ribbon is threaded through the indentation in each
ribbon guide arm.
Caution!
Always turn the ribbon knob clockwise: turning it
counterclockwise (to the left) can cause the ribbon to jam.
