Microline 8480FB User’s Guide
Maintenance • 78

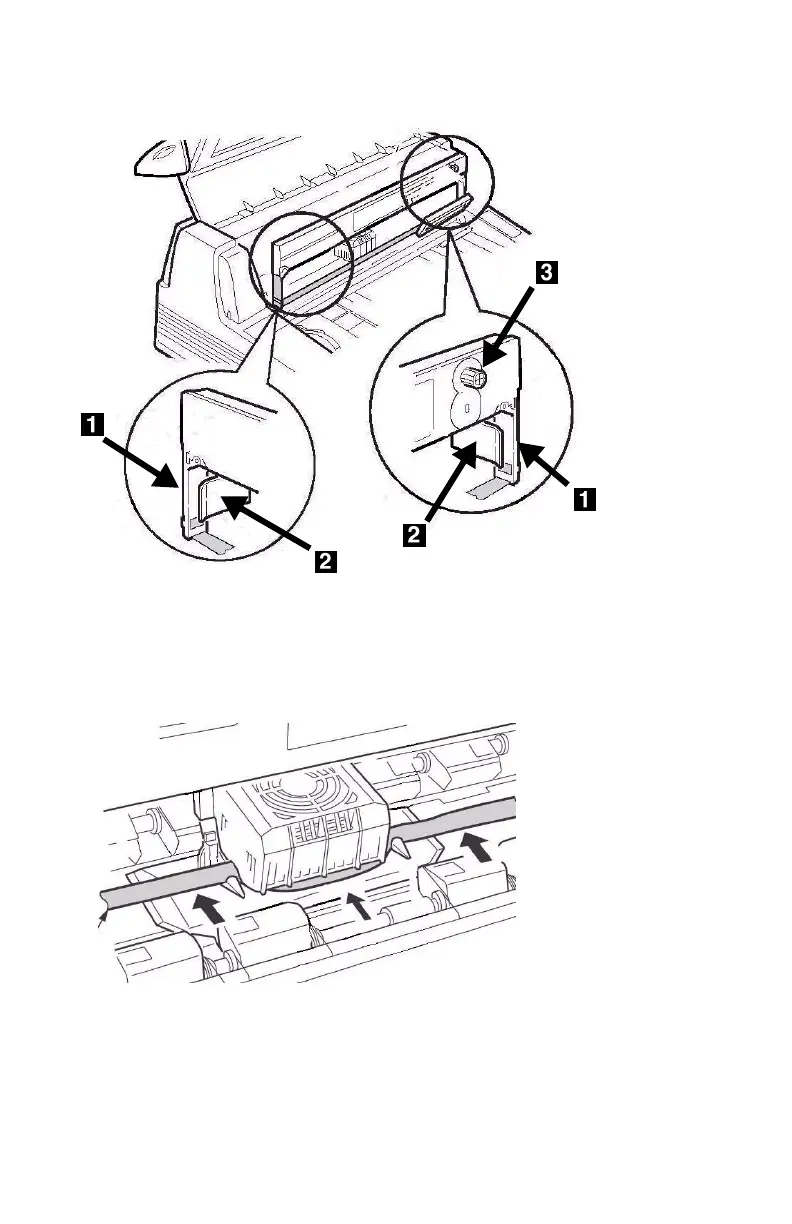

8. Feed the ribbon arms (1) in beside the guides (2), position the
take-up knob (3) over the pin, then press the cartridge in firmly
at either end.
9. Pull the ribbon out a bit at the left end of the cartridge to give
some slack, then slide the ribbon underneath the printhead. Be
careful that the ribbon is not twisted, folded or pulled off the
ribbon arms during this process.
