26 • Setting Up Your Printer

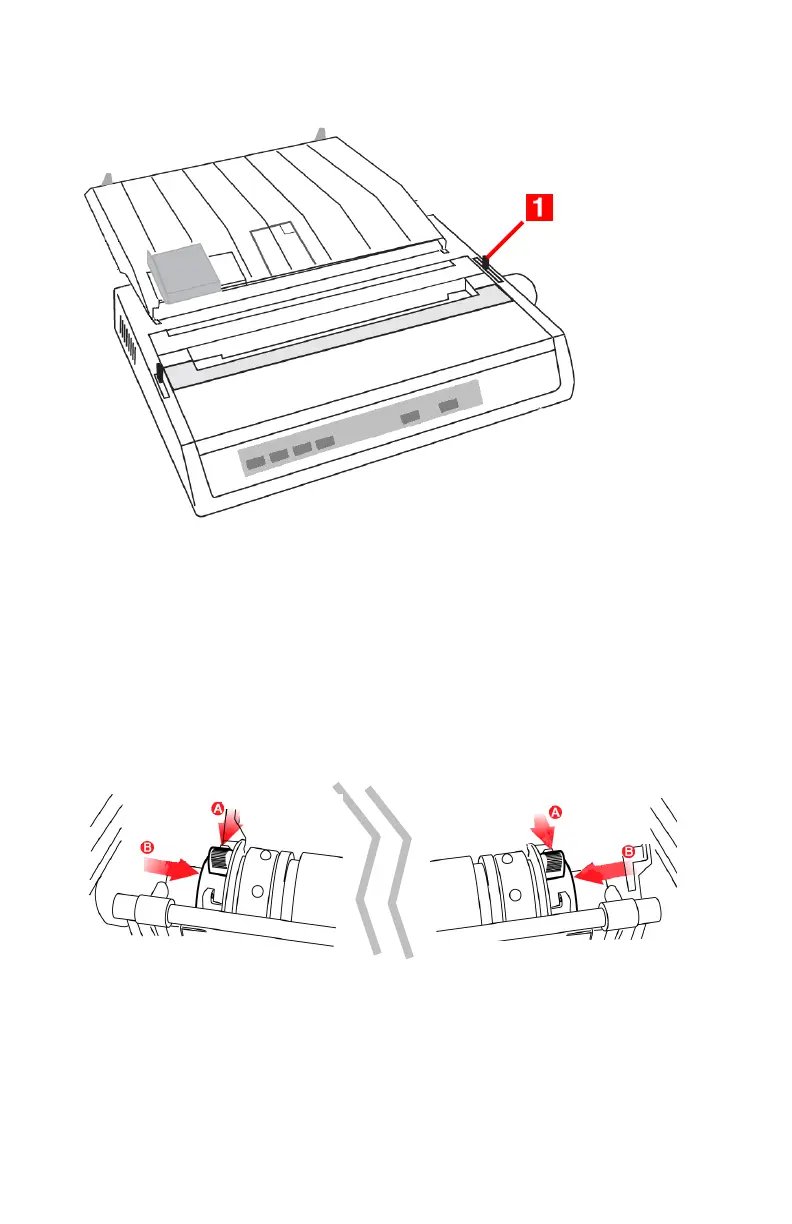

2.Move the paper lever (1) — on the right side of the printer —
toward the rear of the printer, to the single sheet symbol.
3.Ensure that the printer is off-line (SELECT light off): press
SELECT if necessary.
4.If you are using paper wider than 8.5 inches (216 mm), move
the sprocket wheels to their outermost position:
a.Remove the access cover.
b.Pull the lock levers (A) at either end forward and move the
sprocket wheels (B) as needed.
To Next Page
