SYSTEM CONFIGURATION
15

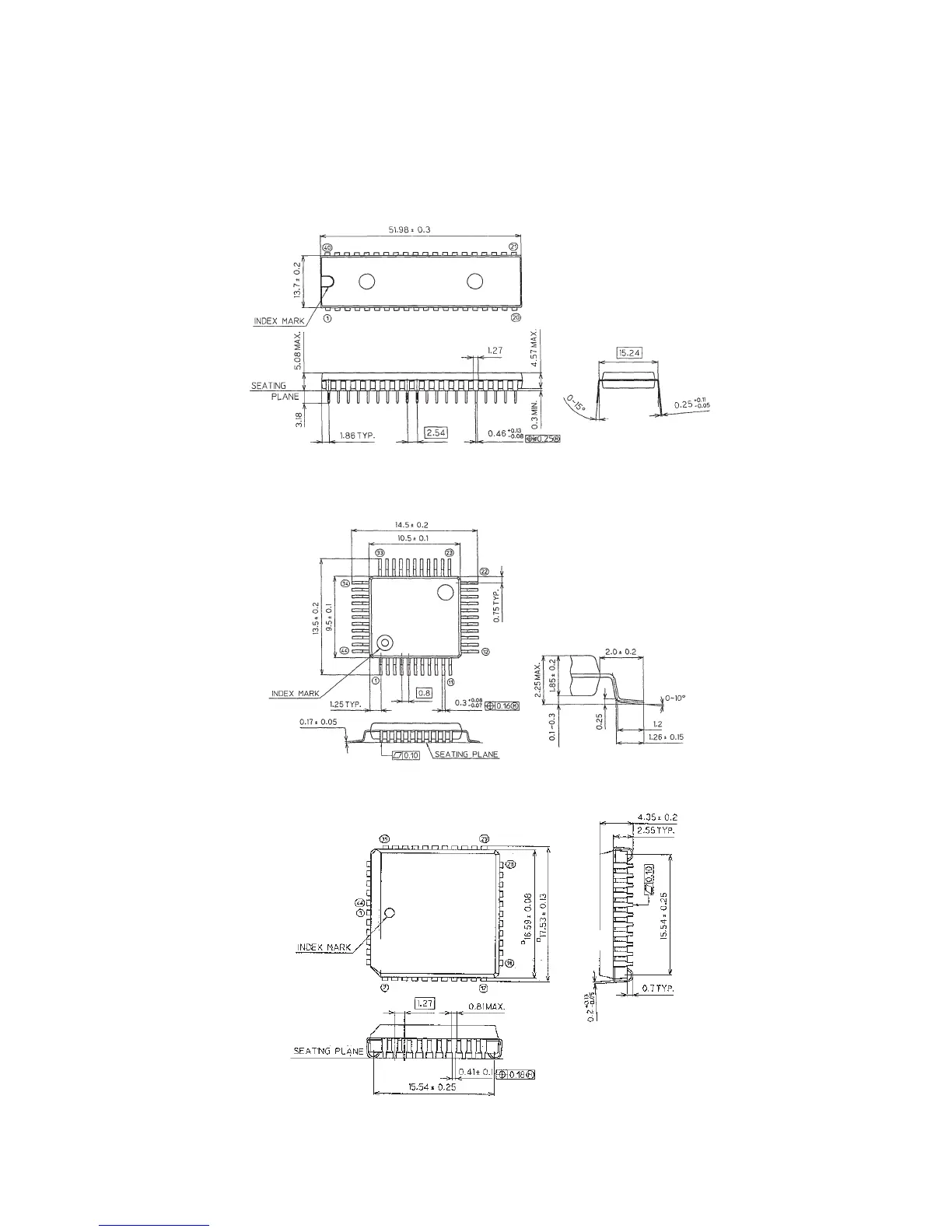

2.2.1 MSM80C154S/MSM83C154S external dimensions
Figure 2-3 MSM80C154S/MSM83C154S external dimensions
MSM80C154SRS/MSM83C154SRS
40-pin Plastic DIP (DIP40-P-600-2.54)
MSM80C154SJS/MSM83C154SJS
44-Pin Plastic QFJ (QFJ44-P-S650-1.27)
MSM80C154SGS/MSM83C154SGS
44-Pin Plastic QFP (QFP44-P-910-0.80-2K)
