SYSTEM CONFIGURATION
17
2.2.2
MSM85C154HVS pin layout and external dimensions
*
The MSM85C154HVS pin layout of bottom side is the same as the pin layout for
MSM83C154SRS.
*
The 27C64/128 device should be used for EPROM.
M85C154H
OKI
JAPAN XXXX
2764/27128
Pin 1 for 2764, 27128

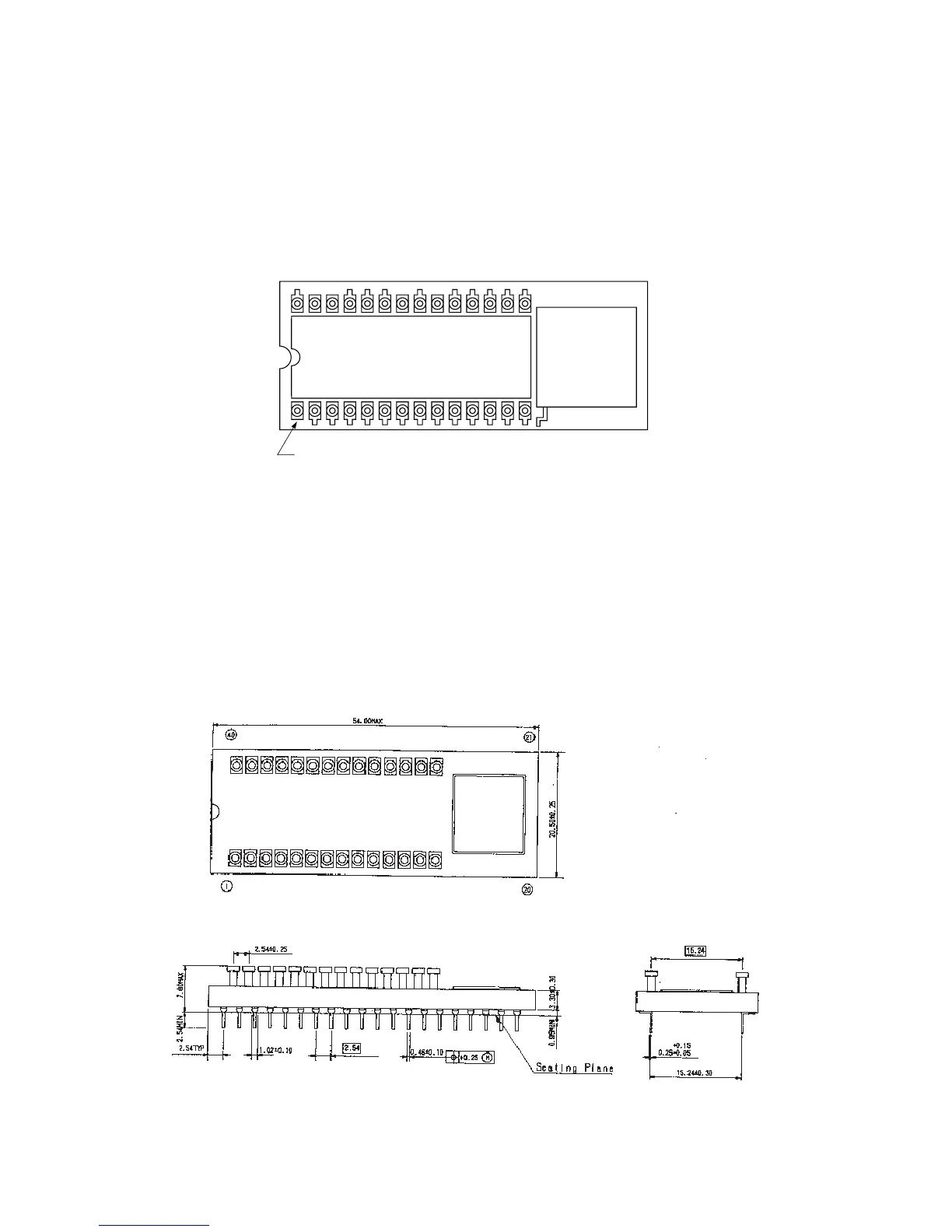

Figure 2-4 MSM85C154HVS pin layout and external dimensions
40-Pin Ceramic Piggy Back (ADIP40-C-600-2.54)
23
25
