MSM80C154S/83C154S/85C154HVS
90
4.5.2.5.7 Caution about use of timer counters 0 and 1
Since the internal clock stops operation during soft power down mode (PD), the auto-reload
operation is not executed if timer/counters 0 and 1 are set to mode 2 or mode 3.
If the power down mode is to be cancelled by the timer, timer/counters 0 and 1 must be set
to mode 0 or mode 1.
When timers 0 and 1 are set to external clock mode, the external clock is taken in as shown
in Figure 4-19 and the power down mode can be cancelled through the overflow of the timer.
If the external interrupt occurs when the T0 or T1 pin goes to “1” level and the soft power down
mode (PD) is cancelled, the gate output (A) changes from “1” level to “0” level and the counter
is incremented by 1.
In addition, “Q” of F/F1 is set on the trailing edge of T0 or T1.
Thus, the counter is incremented by additional 1.
The same event occurs not only by the external interrupt but also by the overflow of the timer.
This is because the overflow signal of the timer is made up of the timer count value “FF” and
the clock input signal “AND”. Therefore, the timer interrupt occurs when the T0 or T1 pin goes
to “1” level, and the power down mode is cancelled and the counter is incremented by
additional 1.
In cancelling the soft power down mode with the external interrupt, if the timer is set to external
clock mode, the T0 or T1 pin must be set to “0” level. If the T0 or T1 pin is at “1” level or if the
power down mode is cancelled by the overflow of the timer, the timer must be reset or the
counter must be decremented by 1.
S3
QD
L
QD
R
F/F1 F/F2
S5
T0 or T1
V
CC
RESET
PD
TIMER 0
or
TIMER 1
F/F1 F/F2
A
"1"
"1"

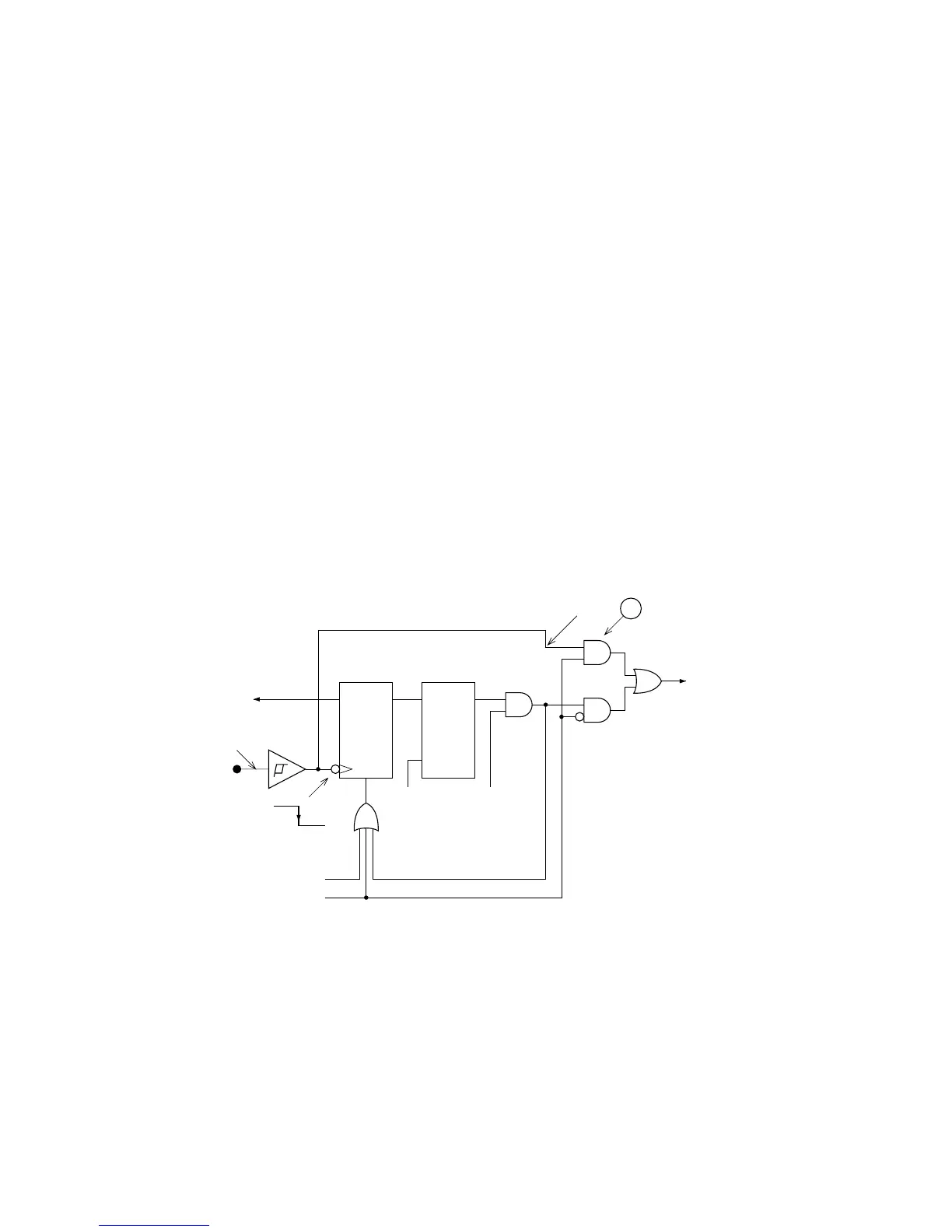

Figure 4-19 T0, T1 external clock detector circuit
