4742-E P-42
SECTION 1 INVERTER UNIT (MIV UNIT)

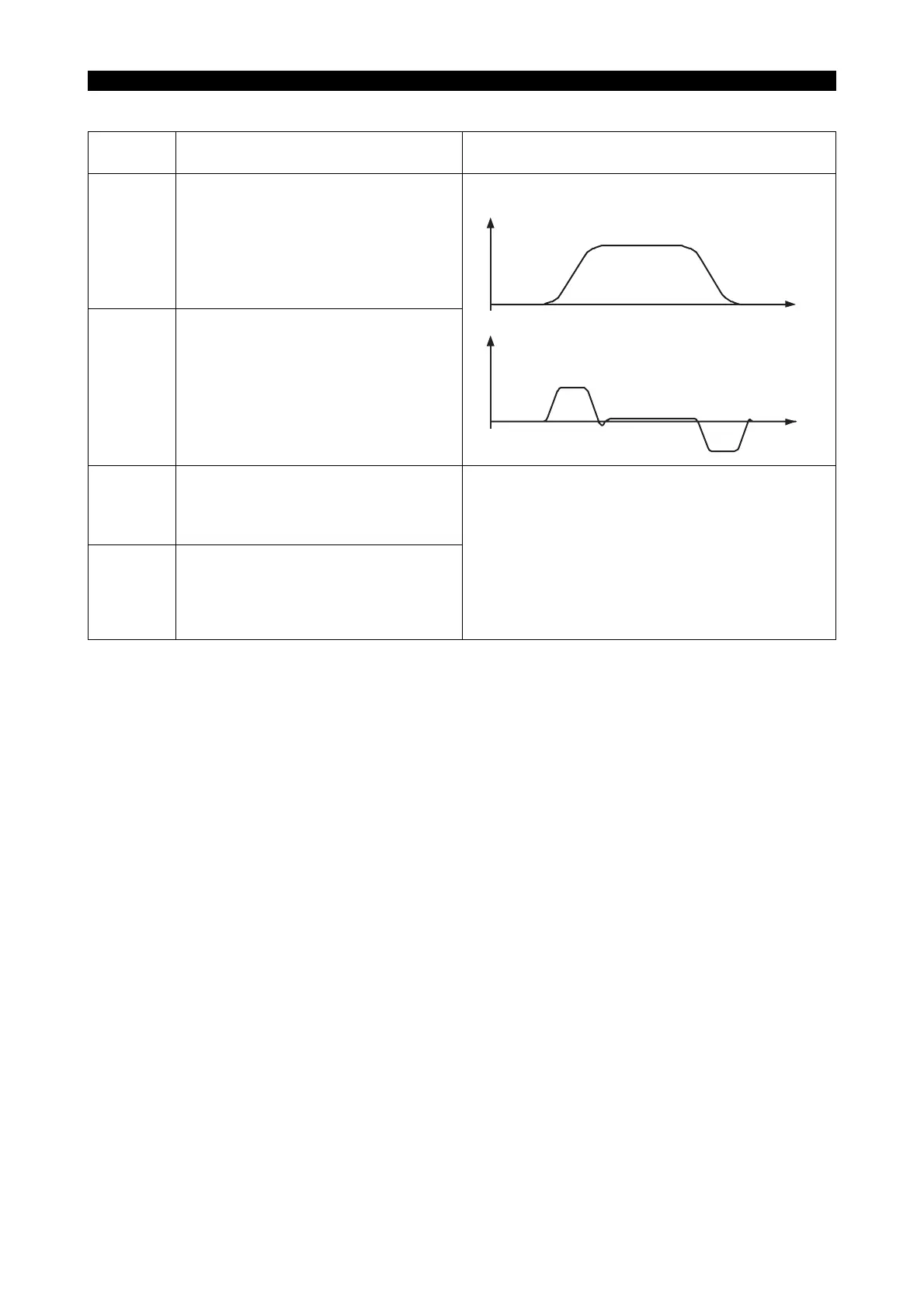

(3) Connection with ICB1H or ICB1H-S
Monitor
terminal
Description Waveform
M1
Motor speed of 1st axis (on L side)
• Output voltage range: -3 V to +3 V
• Unit: 1562 min
-1
/V
M2
Motor output torque of 1st axis
(on L side)
• Output voltage range: -3 V to +3 V
• Unit: Motor peak torque at 3 V
M3
Motor speed of 2nd axis (on M side)
• Output voltage range: -3 V to +3 V
• Unit: 1562 min
-1
/V
Same as above
M4
Motor output torque of 2nd axis
(on M side)
• Output voltage range: -3 V to +3 V
• Unit: Motor peak torque at 3 V
Speed waveform
Torque waveform
t
t
