Okuma ICB1-S - Page 46

4742-E P-41
SECTION 1 INVERTER UNIT (MIV UNIT)

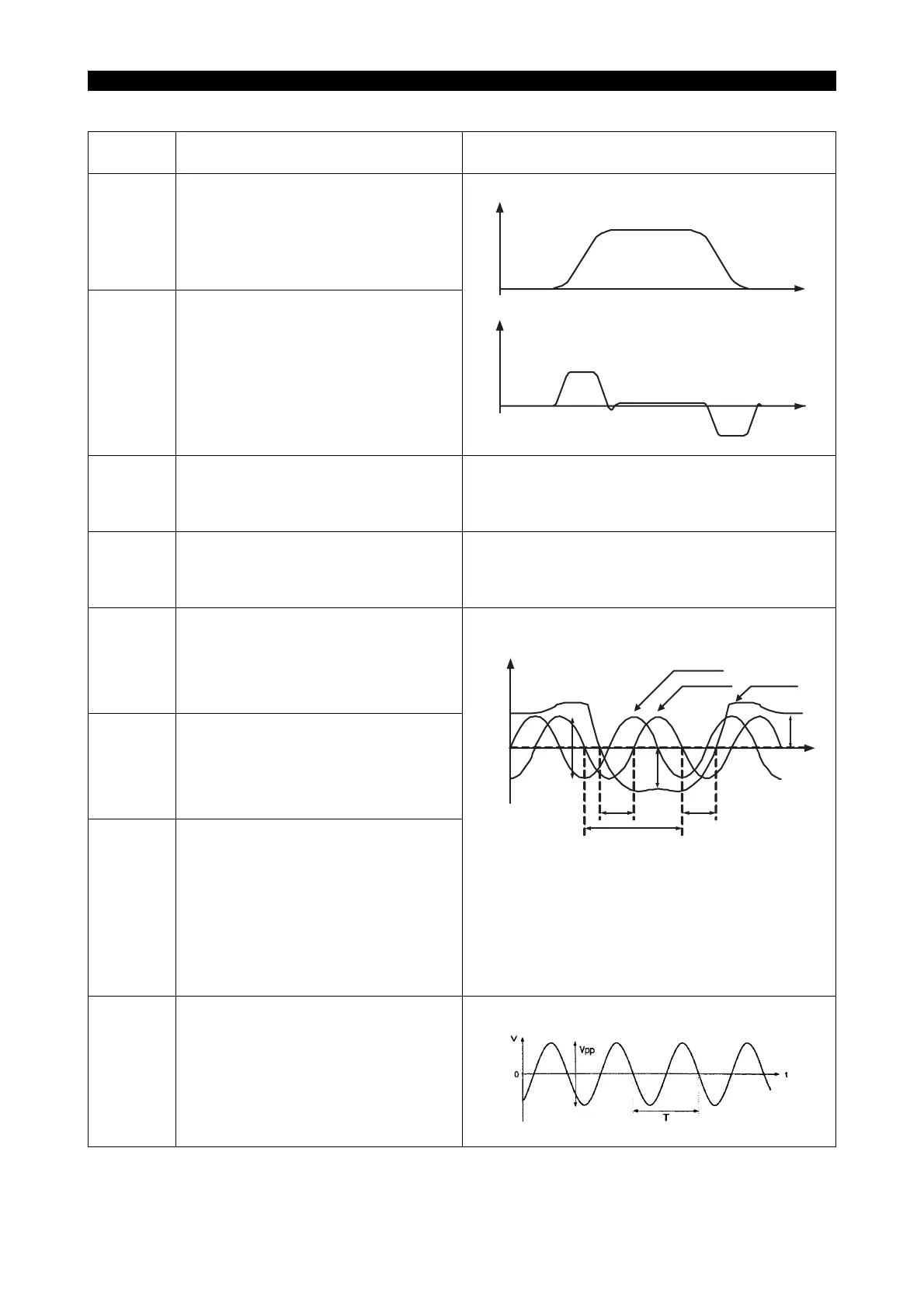

(2) Connection with ICB3F
Monitor
terminal
Description Waveform
M1
Motor speed
• Output voltage range: -3 V to +3 V
• Unit: 1562 min
-1
/V
M2
Motor output torque
• Output voltage range: -3 V to +3 V
• Motor peak torque at 3 V
M3
Motor voltage error (d-axis component)
• Output voltage range: -3 V to +3 V
• Unit: V (Output multiplication 1/42)
M4
Motor voltage error (q-axis component)
• Output voltage range: -3 V to +3 V
• Unit: V (Output multiplication 1/42)
A
A-phase signal of magnetic encoder
• Vpp in the figure on the right:
2.6 to 4.6 V
(3.3 V when gap is normally
adjusted)
B
B-phase signal of magnetic encoder
• Vpp in the figure on the right:
2.6 to 4.6 V
(3.3 V when gap is normally
adjusted)
Z
Z-phase signal of magnetic encoder
• Vz1 in the figure on the right:
1.4 V or above
• Vz2 in the figure on the right:
0.5 V or above
• t1, t2 in the figure on the right:
0.1 to 0.4T
("T" changes according to the rpm.)
R
Resolver signal
• Vpp in the figure on the right:
6.0 V (typ)
• T in the figure on the right: About
102.4
µsec (9.77 KHz)
("T" changes slightly according to
the rpm.)
Speed waveform
Torque waveform
t
t
B-phase signal Z-phase signal
Vz2
Vpp
Vz1
T
t1 t2
A-phase signal
0V
ICB-F
t
