SECTION 4 INSPECTION, MAINTENANCE AND ADJUSTMENTS

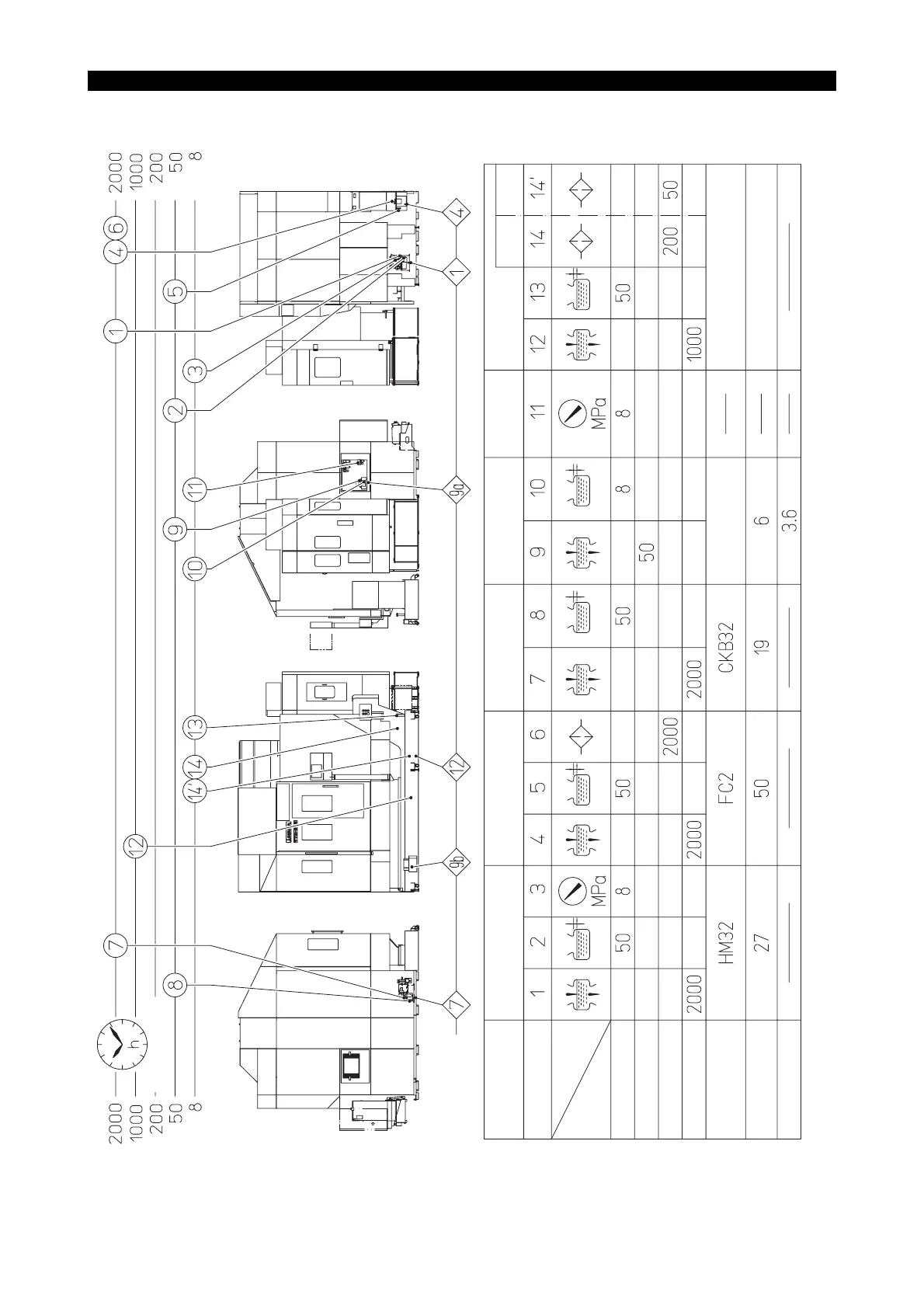

Lubrication Chart
LE11214R0100600040001
Maintenance interval
Drain port
Lubrication point Hydraulic unit Cooling unit Spindle lubrication unit Slideway lubrication unit
Recommended oil*:
Shell Tonna Oil S68
* Oils other than the recommended one may deteriorate accuracy.
Coolant type may vary depending on
materials and tools. Consult your local dealer.
1000
1100
Drum filter conveyor:
Liftup conveyor:
Coolant
Drum filter
conveyor
Liftup
conveyor
Regulator
Note: Clean the lubrication point before lubrication.
Check (hr)
Replenish (hr)
Flush and replace (hr)
Replace (hr)
Lube name
Tank capacity (L)
Oiling amount (L)
Point No.
Control item
Symbol
To Next Page
