SECTION 4 INSPECTION, MAINTENANCE AND ADJUSTMENTS
4. Lubrication and Cleaning of Spindle Cooling Unit
The spindle cooling unit adjusts the temperatures of headstock body and milling spindle body to
optimum values in synchronization with the machine body temperature.
LE11214R0100600120001
4-1. Lubrication
Specified Oil (ISO) FC2
Amount 50 L (13.21 gal)
Oil Change Interval In 1 month after initial installation, and every 6 months after that

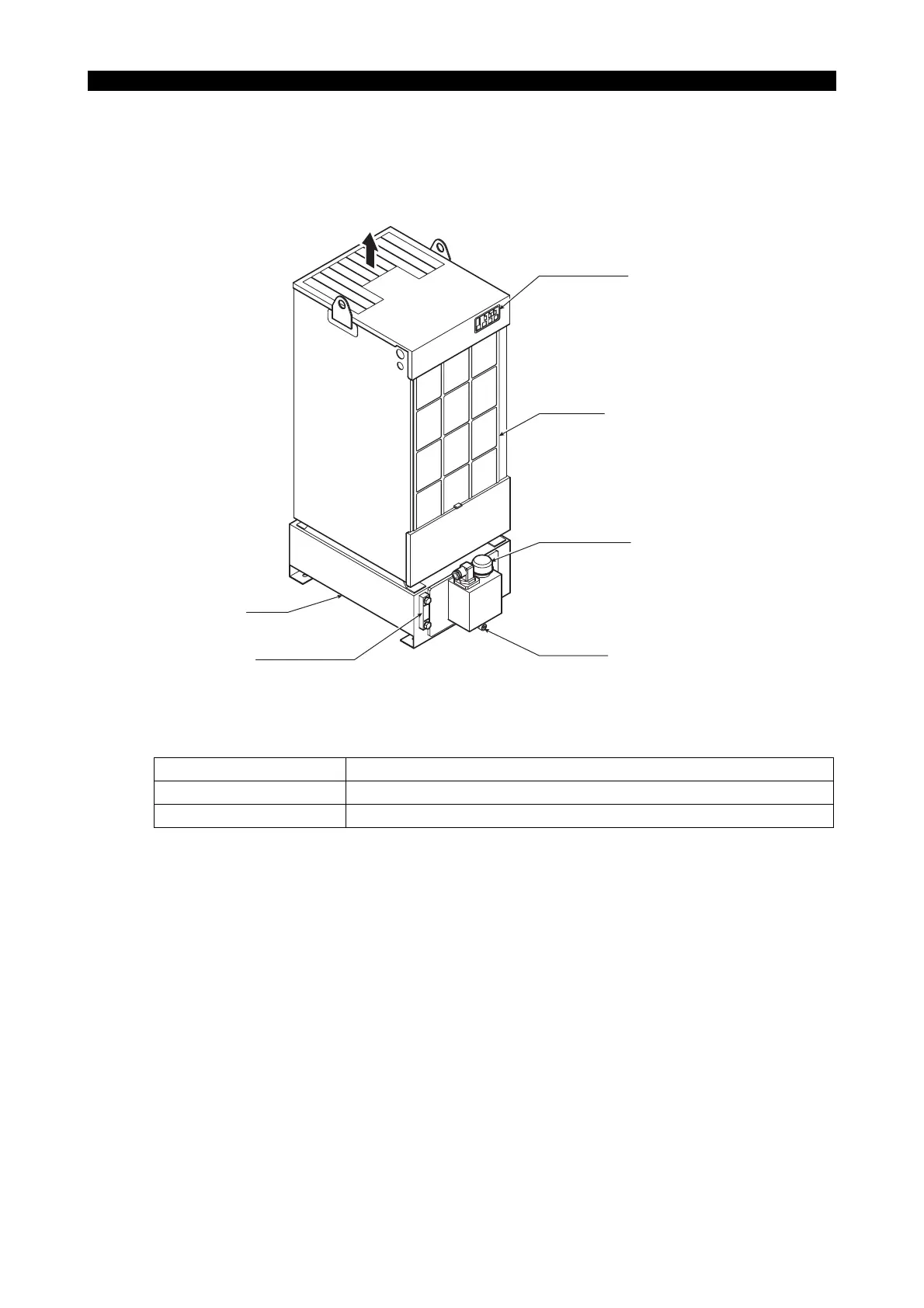

Oil level gauge
Drain port
Air filter
Oil filler port
Control panel
Tank
Air exit
Detachable by a little
lifting
To Next Page
