5699-E P-54
SECTION 4 INSPECTION, MAINTENANCE AND ADJUSTMENTS

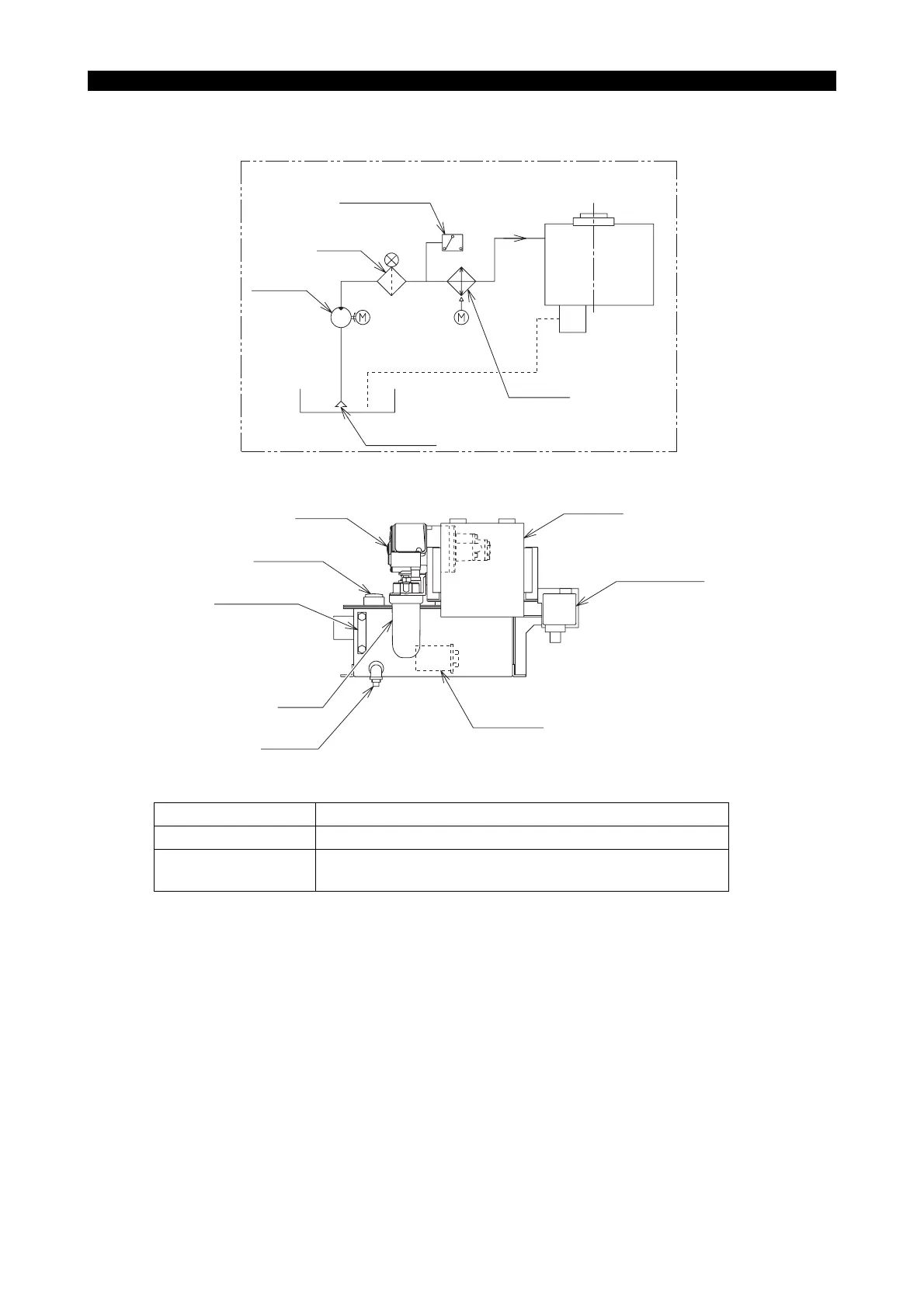

2-3. Spindle Lubrication System
LE11214R0100600070001
When the machine is operated at a high “utilization” rate, special care should be exercised as to
cleanliness and the condition of the oil used. If the oil is dirty, oil change must be made more fre-
quently than specified in the above table.
All the spindle bearings are lubricated by packed high quality grease, requiring no further greasing.
Oil Specification (ISO) CKB32
Amount 19 L (5.0 gal)
Oil Change Interval Change after the first 3 months of operation and thereafter
every 6 months.
Pressure switch
Oil filter
Oil Pump
Oil Pump
Drain port
Oil filler port
Oil level gauge
Oil filter
Suction filter
Pressure switch
Fan cooler
Suction filter
Fan cooler
Headstock
Headstock
To Next Page
