SECTION 4 INSPECTION, MAINTENANCE AND ADJUSTMENTS
9. Adjusting and Replacing the V-belt
The spindle drive AC motor and the spindle are connected with V belts (Power-scrum type).
If the V belts become loose or when they are changed, adjust their tension so that the following val-
ues can be obtained. Adjustment of V belt tension is important for maintaining accuracy.
CAUTION
LE11214R0100600200001
The V-belts are worn once they are slipped, and therefore be sure to check the belt tension
before using the machine.
Specifications Belt used No. of belts X (Tension)
5 to 83 min
-1
10 to 250 min
-1
AC 30/20 kW (40/27 hp)
(low-speed)
AC 30/22 kW (40/30 hp)
(high-speed)
5VX-1900 12
16 mm
(0.63 in.)

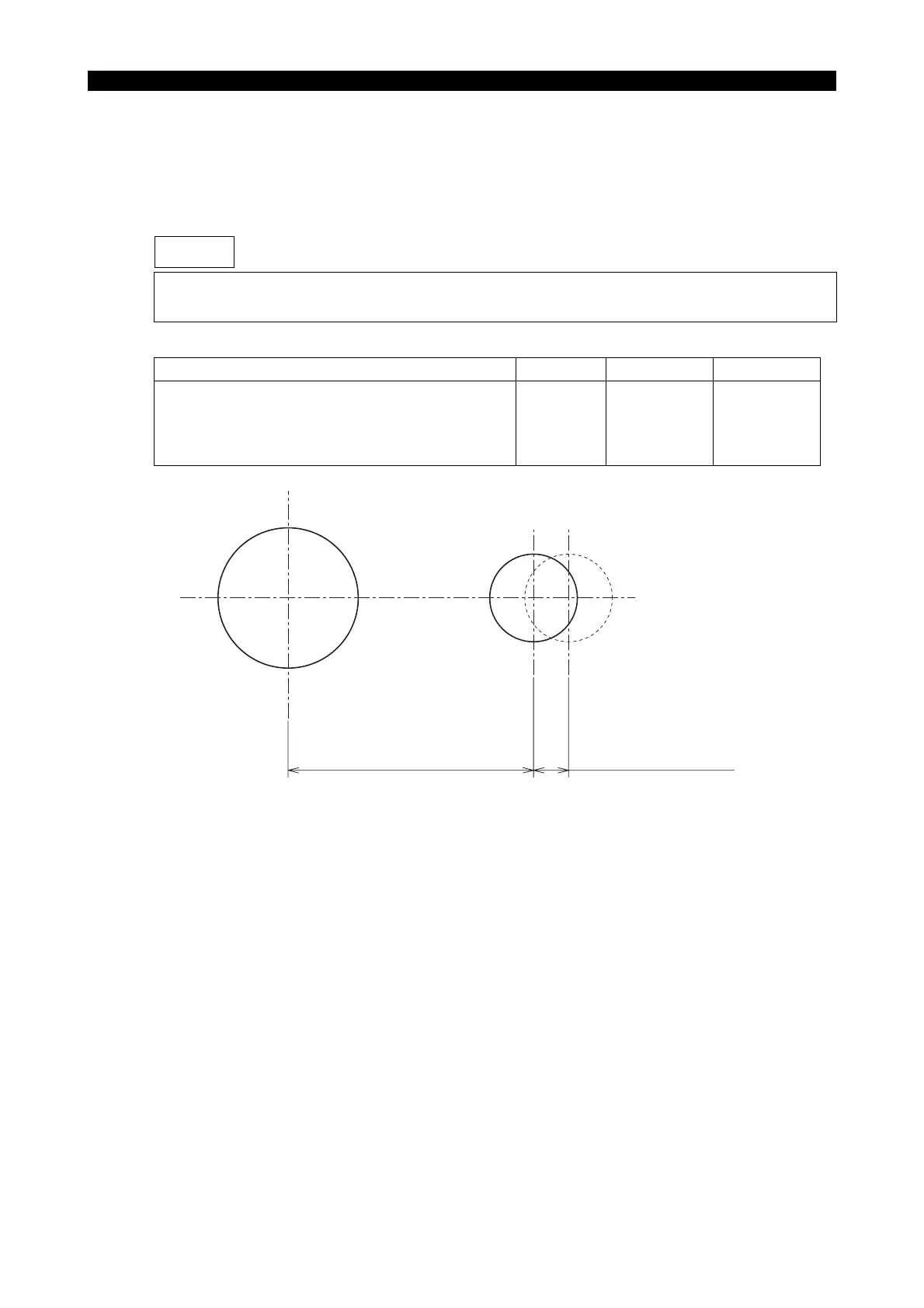

Regular axis distance
(Distance without slack)
X (Distance to give tension)
To Next Page
